Dwyer Instruments
Dwyer EDA Electronic Pressure Controller
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Measuring range
Gauge ranges 0–20 psig through 0–3000 psig (also vacuum 0–30 in Hg Vac model); pressure limits 1.5× range
Accuracy
±1% of FS including linearity, hysteresis, and repeatability (indicator and transmitter); switch repeatability ±1% FS
Output
2× SPDT relays 5 A @ 120/240 VAC / 1 A @ 30 VDC; optional transmitter 4–20 mA, 1–5/0–5/1–6/0–10 VDC
Supply
12–28 VDC/VAC 50/60 Hz (T5 option 14–30 V); −HV option 120–240 VAC
Process connection
1/4 in male NPT (also BSPT/SAE options); wetted 316L SS
Protection
NEMA 4X (IP65)
| المعامل | القيمة |
|---|---|
| Measuring range | Gauge ranges 0–20 psig through 0–3000 psig (also vacuum 0–30 in Hg Vac model); pressure limits 1.5× range |
| Accuracy | ±1% of FS including linearity, hysteresis, and repeatability (indicator and transmitter); switch repeatability ±1% FS |
| Output | 2× SPDT relays 5 A @ 120/240 VAC / 1 A @ 30 VDC; optional transmitter 4–20 mA, 1–5/0–5/1–6/0–10 VDC |
| Supply | 12–28 VDC/VAC 50/60 Hz (T5 option 14–30 V); −HV option 120–240 VAC |
| Process connection | 1/4 in male NPT (also BSPT/SAE options); wetted 316L SS |
| Protection | NEMA 4X (IP65) |
| Ambient temperature | Ambient 20 to 140 °F (−6.6 to 60 °C); process 0 to 176 °F (−18 to 80 °C); compensated 32 to 122 °F |
| Display | 4-digit backlit LCD (0.60 in H × 0.33 in W digits) |
| Approvals | CE; UL |
| Mounting | Panel / flush / pipe mount weatherproof housing; any orientation |
| Sensor type | Electronic pressure controller (gage + dual switches + optional transmitter) |

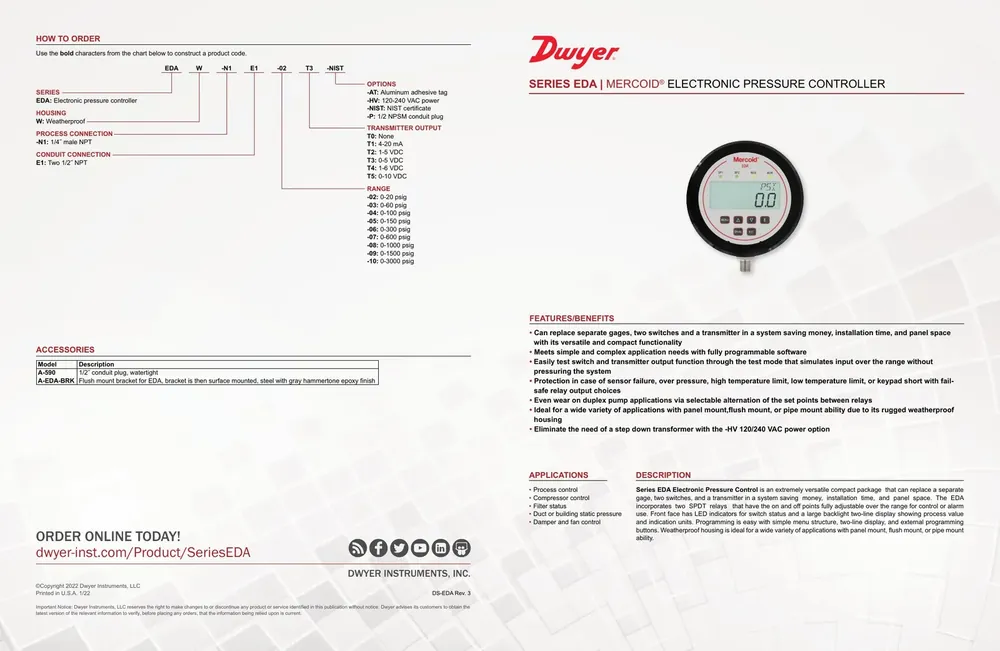

| Notes | Series EDA / Mercoid Electronic Pressure Controller DS-EDA Rev.3 + EDAW-2 bulletin on assets.dwyeromega.com. |
| Weight | 1.18 lb (535 g) |
