Mensor (WIKA)

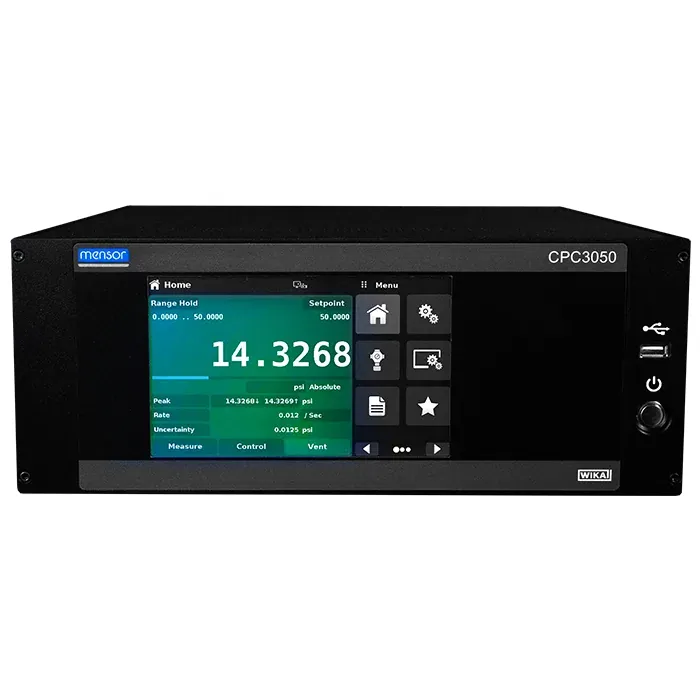

Mensor CPC3050 High-Speed Pressure Controller
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Accuracy
0.020% FS
Display
7.0" color LCD resistive touchscreen
Controller Type
High-speed pressure controller; desktop or 19"/3U rack
Pressure Ranges
-1 ... 210 bar (-15 ... 3,045 psi); LP/HP CPR3050 transducers
Control Speed
< 4 s for 25% FS steps
Reference Transducers
Up to two CPR3050 + optional barometric reference
| المعامل | القيمة |
|---|---|
| Accuracy | 0.020% FS |
| Display | 7.0" color LCD resistive touchscreen |
| Controller Type | High-speed pressure controller; desktop or 19"/3U rack |
| Pressure Ranges | -1 ... 210 bar (-15 ... 3,045 psi); LP/HP CPR3050 transducers |
| Control Speed | < 4 s for 25% FS steps |
| Reference Transducers | Up to two CPR3050 + optional barometric reference |
| Interfaces | Serial, USB, Ethernet, GPIB; Mensor legacy + PACE emulation |
| Ports | 5× 7/16"-20 F SAE + 1× 10-32 UNF barometer |
| Weight | Approx. 12.7 kg (28 lb) |
| Pressure Units | 39 + 2 freely programmable |
| Calibration Interval | 365 days |
| Datasheet | WIKA CT 27.56 |
