Additel

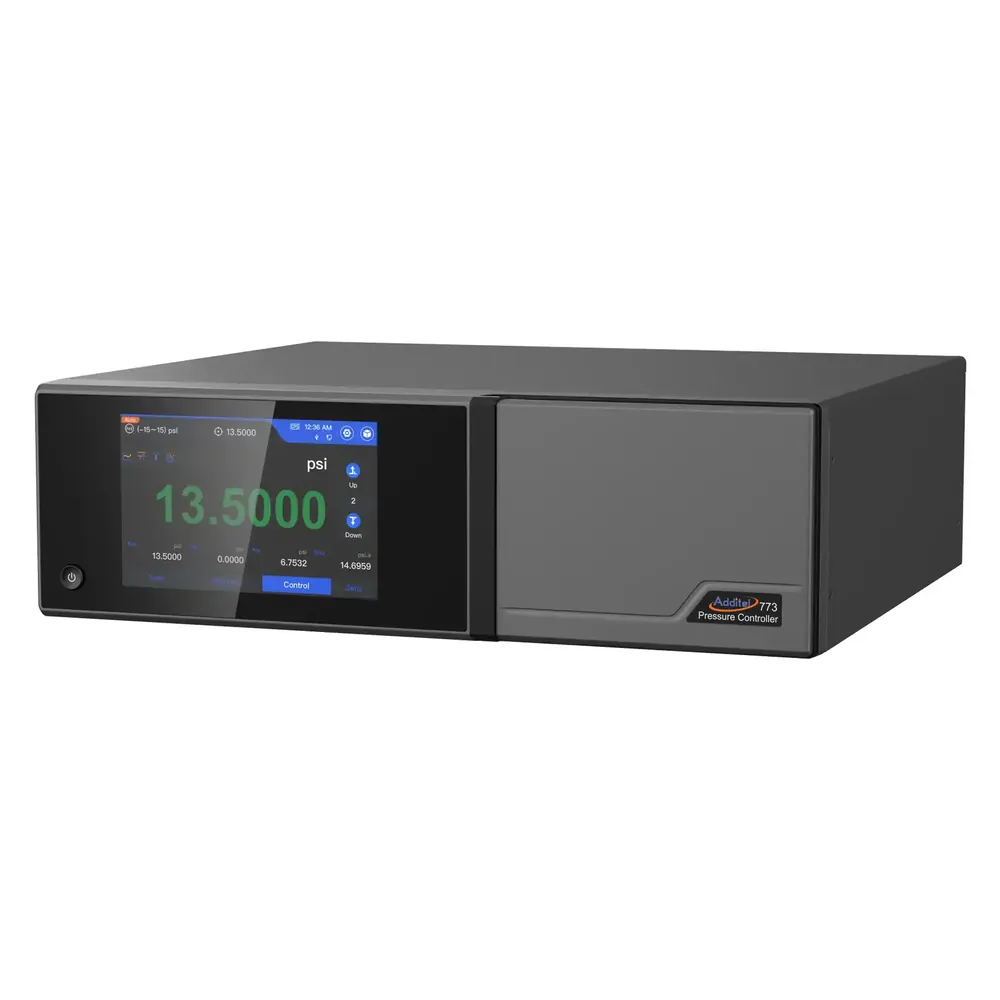

Additel ADT 773 Pressure Controller
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Measuring range
ADT773-LLP: -380 to 400 inH2O (-0.95 to 1 bar); ADT773-D: -380 to 2,800 inH2O (-0.95 to 7 bar)
Accuracy
0.01%FS or 0.02%FS selectable (module-dependent; DP1/DP2/DP5/DP10 specials per datasheet)
Pressure type
Low differential / gauge (built-in differential pump)
Display
7 in color touch screen
Communication
RS232, USB, LAN, Wi-Fi, Bluetooth, GPIB
Precision
0.004%FS or 0.007%FS selectable (module-dependent)
| المعامل | القيمة |
|---|---|
| Measuring range | ADT773-LLP: -380 to 400 inH2O (-0.95 to 1 bar); ADT773-D: -380 to 2,800 inH2O (-0.95 to 7 bar) |
| Accuracy | 0.01%FS or 0.02%FS selectable (module-dependent; DP1/DP2/DP5/DP10 specials per datasheet) |
| Pressure type | Low differential / gauge (built-in differential pump) |
| Display | 7 in color touch screen |
| Communication | RS232, USB, LAN, Wi-Fi, Bluetooth, GPIB |
| Precision | 0.004%FS or 0.007%FS selectable (module-dependent) |
| Control Stability | <0.003%FS (or 0.05 Pa, whichever greater) |
| Control Response Time | <10 seconds (50 mL load, 20% step to 0.005%FS stability) |
| Module Bays | 2 interchangeable ADT151 pressure module bays + optional barometric module |
| Max Load Volume | 500 mL |
| Pressure Port | 6 mm Festo (LLP) / 1/4 BSP M (D); port filters 40–100 μm |
| Contamination Prevention | Optional Contamination Prevention System (CPS) |
