Additel

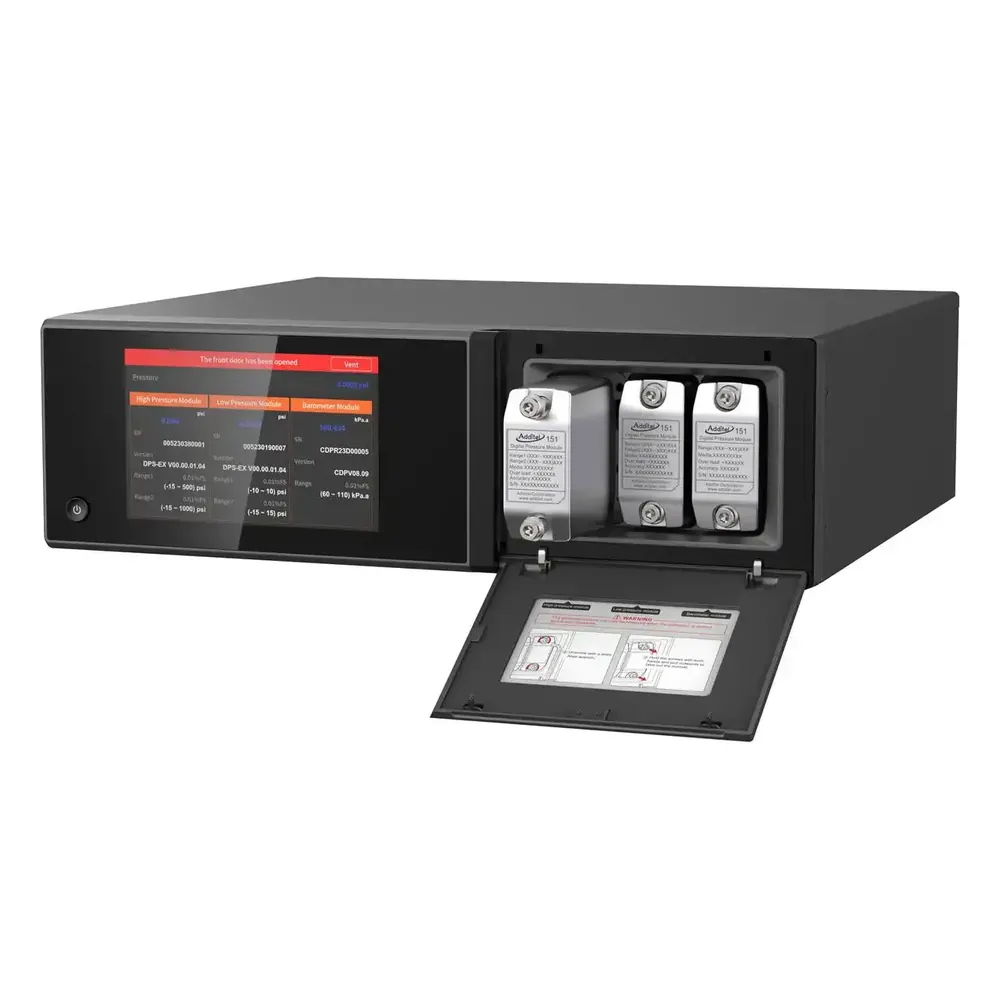

Additel ADT 783 Pressure Controller
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Measuring range
−14.35 psi to 6,000 psi (−0.99 to 420 bar), model/module dependent
Accuracy
0.02% FS, 0.01% FS or 0.01% RD (selectable by ADT151 module)
Output
Automated pressure control; gauge/absolute; optional barometric reference
Supply
External gas supply required; instrument AC power per datasheet
Process connection
Controller manifold / module ports (see datasheet)
Wetted parts
Per interchangeable ADT151 pressure modules
| المعامل | القيمة |
|---|---|
| Measuring range | −14.35 psi to 6,000 psi (−0.99 to 420 bar), model/module dependent |
| Accuracy | 0.02% FS, 0.01% FS or 0.01% RD (selectable by ADT151 module) |
| Output | Automated pressure control; gauge/absolute; optional barometric reference |
| Supply | External gas supply required; instrument AC power per datasheet |
| Process connection | Controller manifold / module ports (see datasheet) |
| Wetted parts | Per interchangeable ADT151 pressure modules |
| Housing | Benchtop/rack modular controller enclosure |
| Protection | Laboratory/benchtop controller (see datasheet environmental) |
| Media temperature | Clean dry nitrogen or air (external gas supply) |
| Ambient temperature | Per ADT783 datasheet operating table |
| Display | 7-inch touchscreen |
| Communication | RS232, USB, LAN/Wi-Fi, Bluetooth, GPIB |
| Approvals | CE and regional markings per datasheet |
| Notes | Specs from Additel ADT783 Pressure Controllers datasheet + 773/783/793 user manual. Two interchangeable pressure module bays. |
| Control Stability | <0.003% FS |
