Ashcroft

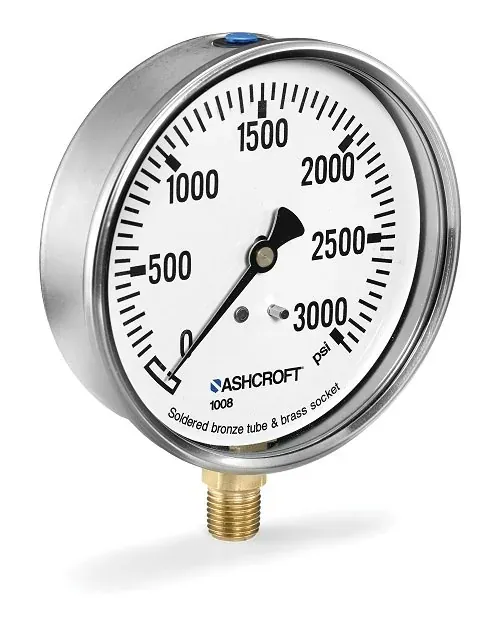

Ashcroft 1008A-L Analog Pressure Gauges
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Measuring range
Vacuum, compound, and gauge pressures to 15,000 psi (63 mm & 100 mm)
Accuracy
ASME B40.100 Grade B (±3% first/last quarter, ±2% middle half of span)
Accuracy % FS
3
Output
none (mechanical dial)
Supply
none (mechanical)
Process connection
1/4 NPT lower mount typical for 1008AL liquid-filled
| المعامل | القيمة |
|---|---|
| Measuring range | Vacuum, compound, and gauge pressures to 15,000 psi (63 mm & 100 mm) |
| Accuracy | ASME B40.100 Grade B (±3% first/last quarter, ±2% middle half of span) |
| Accuracy % FS | 3 |
| Output | none (mechanical dial) |
| Supply | none (mechanical) |
| Process connection | 1/4 NPT lower mount typical for 1008AL liquid-filled |
| Wetted parts | Bourdon tube / socket per Ashcroft 1008A/AL datasheet |
| Ambient temperature | Per Ashcroft pressure gauge installation manual / 1008A/AL datasheet |
| Approvals | ASME B40.100; CRN (where applicable) |
| Sensor type | Bourdon-tube analog pressure gauge (1008AL liquid-filled) |
| Case Size | 63 mm or 100 mm stainless steel case |
| Case Fill | 1008AL liquid-filled (glycerin/silicone) — Instrivo SKU 1008A-L |
