Ashcroft

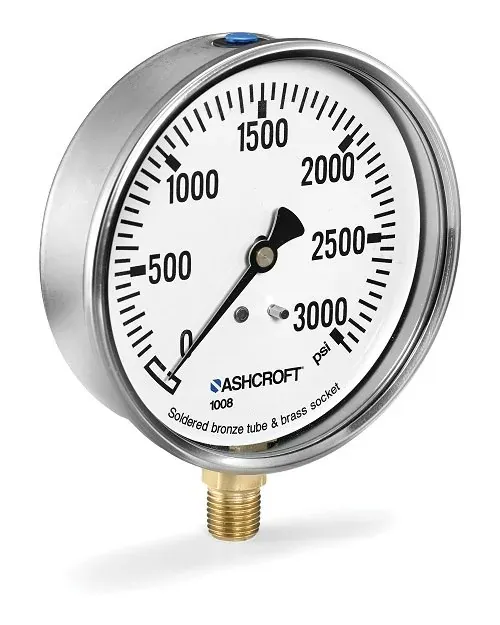

Ashcroft 1008A-F Analog Pressure Gauges
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Measuring range
Vacuum, compound, and gauge pressures to 15,000 psi (metric ranges available)
Accuracy
±3-2-3% of span (ASME B40.100 Grade B)
Process connection
¼ NPT male; lower or center-back; front-flange (F) mounting option
Wetted parts
Bronze Bourdon tube (vac–6,000 psi) / 316 SS (10,000–15,000 psi); brass socket
Protection
IP66; NEMA 4 for water and dust ingress
Ambient temperature
Dry −40 to 158 °F (−40 to 70 °C); glycerin fill 20 to 158 °F (−7 to 70 °C)
| المعامل | القيمة |
|---|---|
| Measuring range | Vacuum, compound, and gauge pressures to 15,000 psi (metric ranges available) |
| Accuracy | ±3-2-3% of span (ASME B40.100 Grade B) |
| Process connection | ¼ NPT male; lower or center-back; front-flange (F) mounting option |
| Wetted parts | Bronze Bourdon tube (vac–6,000 psi) / 316 SS (10,000–15,000 psi); brass socket |
| Protection | IP66; NEMA 4 for water and dust ingress |
| Ambient temperature | Dry −40 to 158 °F (−40 to 70 °C); glycerin fill 20 to 158 °F (−7 to 70 °C) |
| Approvals | CE; UKCA; CRN |
| Case Size | 63 mm (2½ in) or 100 mm (4 in) |
| Case Material | 304 stainless steel case with crimped ring |
| Movement | PowerFlex brass/polyester segment movement |
| Window | Polycarbonate |
| Dampening | Dry, glycerin/silicone liquid-fill, FlutterGuard, or field-fillable |
| Special Features | True Zero dial; ventable fill plugs; 1008A-F front-flange panel/front mount variant of 1008A/AL |
| Form Factor | Industrial analog Bourdon-tube pressure gauge for pumps, hydraulics, OEM equipment |
