Druck

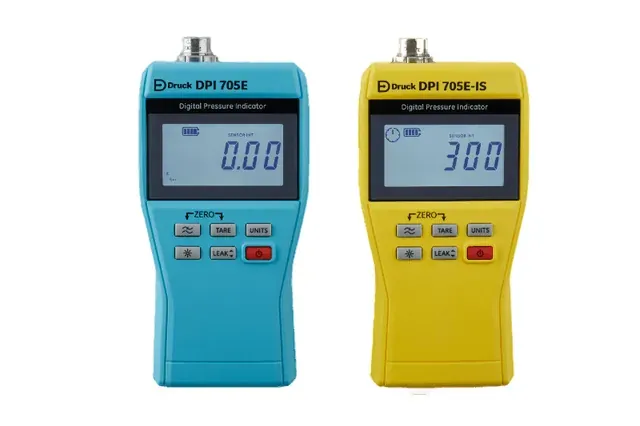

Druck DPI 705E
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Measuring range
41 pressure ranges from ±25 mbar to 1,400 bar (±10 inH2O to 20,000 psi / 2.5 kPa to 140 MPa); gauge/absolute/differential + optional remote PM700E
Accuracy
Total 1-year uncertainty down to 0.025% FS over −10 to +50 °C (three accuracy levels)
Output
Handheld digital indicator (LCD); no continuous process transmitter output
Supply
4 × AA alkaline/NiCd/NiMH; ultra-efficient (approx. 8 h/day, 6 days/week up to one year on one set)
Protection
IP54 impact-resistant sealed case
Display
16 mm digit high-contrast LCD with backlight; ±99999 readout
| المعامل | القيمة |
|---|---|
| Measuring range | 41 pressure ranges from ±25 mbar to 1,400 bar (±10 inH2O to 20,000 psi / 2.5 kPa to 140 MPa); gauge/absolute/differential + optional remote PM700E |
| Accuracy | Total 1-year uncertainty down to 0.025% FS over −10 to +50 °C (three accuracy levels) |
| Output | Handheld digital indicator (LCD); no continuous process transmitter output |
| Supply | 4 × AA alkaline/NiCd/NiMH; ultra-efficient (approx. 8 h/day, 6 days/week up to one year on one set) |
| Protection | IP54 impact-resistant sealed case |
| Display | 16 mm digit high-contrast LCD with backlight; ±99999 readout |
| Approvals | Calibration certificate in bar/psi/kPa standard; optional UKAS |
| Hazardous area | DPI705E-IS intrinsically safe version available |
| Notes | Specs from Druck DPI705E Datasheet English (2026) and User Manual 137M7122. Compatible with Druck pneumatic/hydraulic hand pumps and 4Sight2. |
| Operating Temperature | −10 to +50 °C (specification temperature span for total uncertainty) |
| Functions | Leak test (1/3/5 min), tare, max/min, filter (10-reading average), high/low alarms |
| Pressure Units | 20 units including mbar, bar, Pa, kPa, MPa, psi, mmHg, inHg, mmH2O, inH2O, ftH2O |
| Optional Sensors | Remote plug-and-play PM700E pressure modules; RTD-PROBE temperature option |
