Ametek Crystal

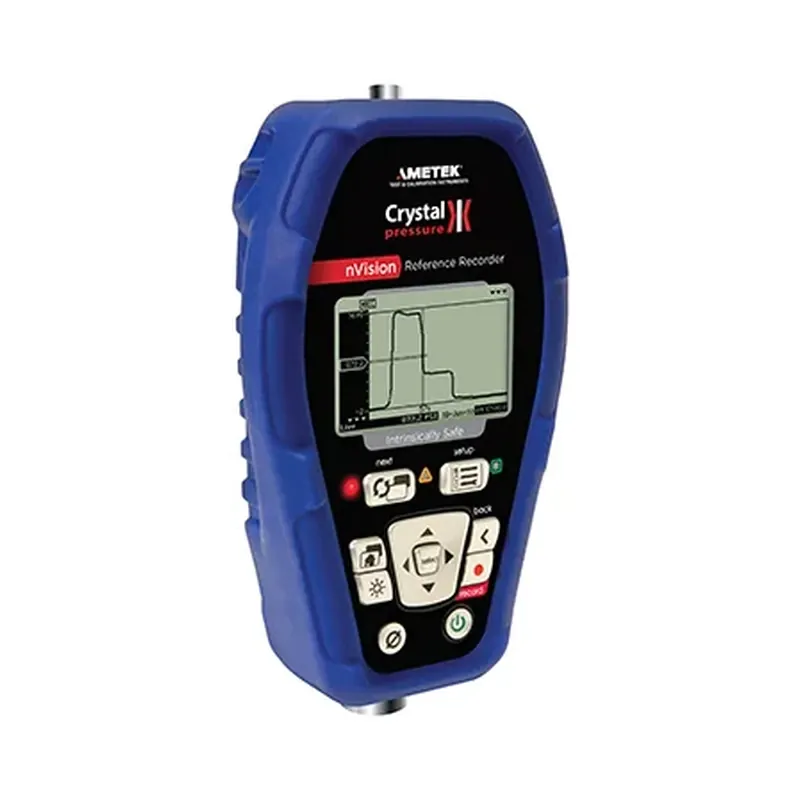

Ametek Crystal nVision Pressure Recorder
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Accuracy
Typical ±0.025% of reading (module/range dependent; includes 1-year stability)
Protection
IP67 field enclosure
Type
nVision reference pressure recorder / multifunction calibrator
Pressure Modules
Gauge/absolute modules from ~30 psi to 15,000 psi (1000 bar / 100 MPa)
Recording
Reference recorder with data logging / chart-recorder replacement use cases
Operating Temperature
−20…+50 °C typical operating range
| المعامل | القيمة |
|---|---|
| Accuracy | Typical ±0.025% of reading (module/range dependent; includes 1-year stability) |
| Protection | IP67 field enclosure |
| Type | nVision reference pressure recorder / multifunction calibrator |
| Pressure Modules | Gauge/absolute modules from ~30 psi to 15,000 psi (1000 bar / 100 MPa) |
| Recording | Reference recorder with data logging / chart-recorder replacement use cases |
| Operating Temperature | −20…+50 °C typical operating range |
| Modules | Interchangeable pressure modules (PM) + optional BARO / RTD |
| Software | CrystalControl for configuration, download and reporting |
| Application | Field pressure calibration, hydrostatic tests, long-term recording |
| Document | nVision psi data sheet + nVision user manual (Ametek Calibration / Crystal) |
| Brand Line | Ametek Crystal Engineering |
| Safety | ATEX / IECEx / CSA intrinsically safe variants (per configuration) |
