Ametek Crystal

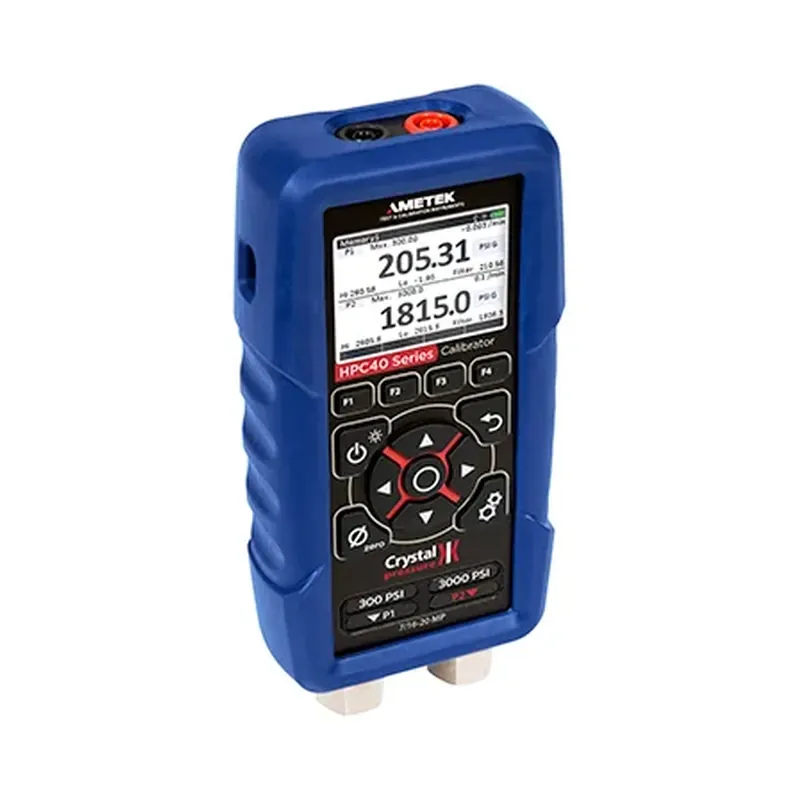

Ametek Crystal HPC40 Pressure Calibrator
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Accuracy Gauge 18 28C
0–30% FS ±0.01% FS; 30–110% of range ±0.035% of reading
Accuracy Gauge M20 50C
0–30% FS ±0.015% FS; 30–110% of range ±0.050% of reading (full temp compensation)
Pressure Range
Built-in sensors up to 15,000 psi / 1000 bar; gauge/absolute/differential
Electrical
Measure/source mA; VDC in; switch test; internal 24 VDC loop supply
Temperature
RTD input with True Ohm technology
Modules
Optional APM CPF Advanced Pressure Modules (±0.025% rdg class)
| المعامل | القيمة |
|---|---|
| Accuracy Gauge 18 28C | 0–30% FS ±0.01% FS; 30–110% of range ±0.035% of reading |
| Accuracy Gauge M20 50C | 0–30% FS ±0.015% FS; 30–110% of range ±0.050% of reading (full temp compensation) |
| Pressure Range | Built-in sensors up to 15,000 psi / 1000 bar; gauge/absolute/differential |
| Electrical | Measure/source mA; VDC in; switch test; internal 24 VDC loop supply |
| Temperature | RTD input with True Ohm technology |
| Modules | Optional APM CPF Advanced Pressure Modules (±0.025% rdg class) |
| Baro Option | Toggle gauge/absolute; BARO accuracy ±0.00725 psi / ±0.5 mbar |
| Connection | Crystal CPF female; 316 SST wetted; silicone oil fill |
| Power | 4×AA or rechargeable options; mini-USB |
| Models | HPC41 (single) / HPC42 (dual sensor) |
| Delivery | ISO 17025 NIST-traceable certificate, adapters, boot, leads |
| Application | Handheld pressure + mA loop calibrator for field/custody transfer |
