Additel

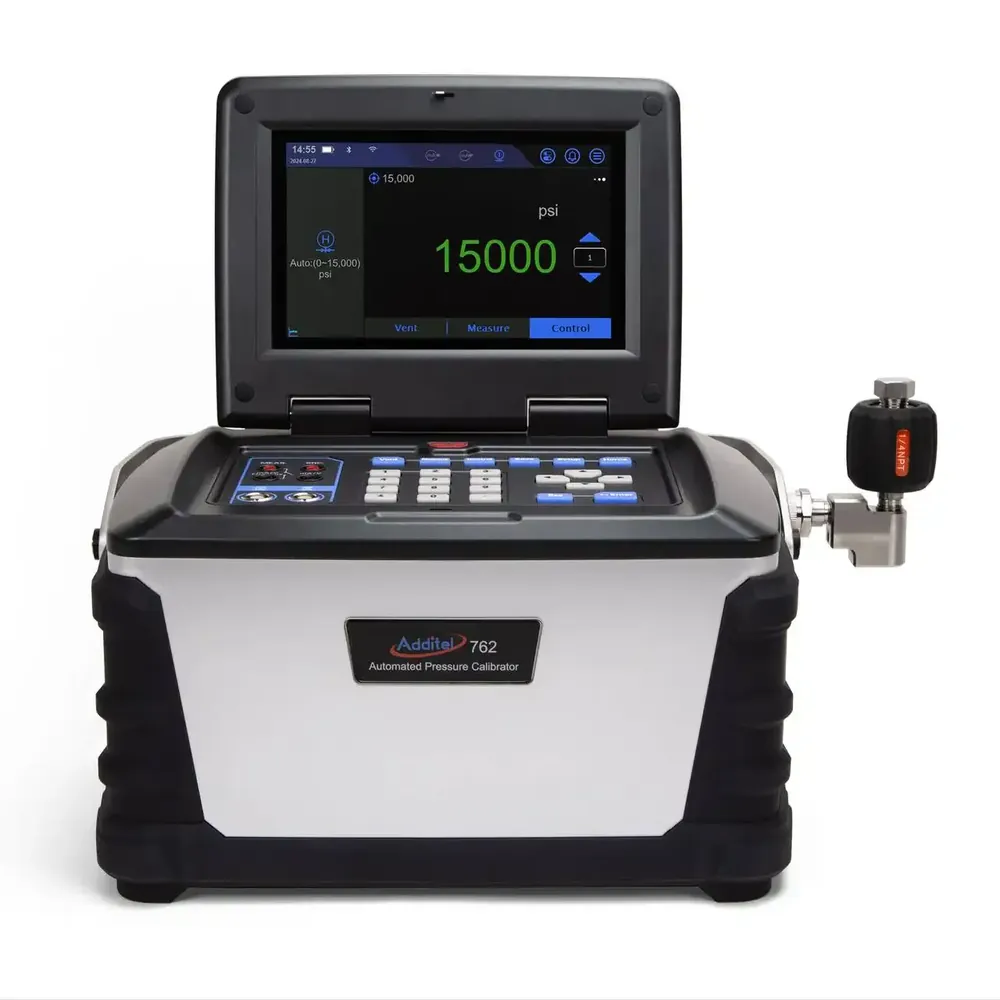

Additel ADT762 Automated Hydraulic Pressure Calibrator
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Accuracy
To 0.01% FS (dual-range models GP10K / GP15K)
Approvals
ISO 17025 calibration with data included
Pressure Generation
Automated hydraulic generation/control to 15000 psi (1035 bar)
Control Stability
≤0.005% FS
Range Selection
Manual or auto dual-range (e.g. 3k/10k psi or 6k/15k psi)
Modules
Supports two external pressure modules; optional external-module control
| المعامل | القيمة |
|---|---|
| Accuracy | To 0.01% FS (dual-range models GP10K / GP15K) |
| Approvals | ISO 17025 calibration with data included |
| Pressure Generation | Automated hydraulic generation/control to 15000 psi (1035 bar) |
| Control Stability | ≤0.005% FS |
| Range Selection | Manual or auto dual-range (e.g. 3k/10k psi or 6k/15k psi) |
| Modules | Supports two external pressure modules; optional external-module control |
| Comms | Wi-Fi, LAN, Bluetooth, USB and Ethernet |
| Hart | Full HART field communicator; HART and PROFIBUS support |
| Documentation | Documented task feature; up to 1000 stored tasks; data logging |
| Purge | Built-in auto-purge application for hydraulic systems |
| Portability | Portable design for field and laboratory use |
| Pump | Patented electric pump technology |
| Functions | Calibrate transmitters, switches, dial/digital gauges and sensors including HART/PROFIBUS |
| Special Features | Dual-mode HART; pressure switch test; task management without PC |
