Ashcroft

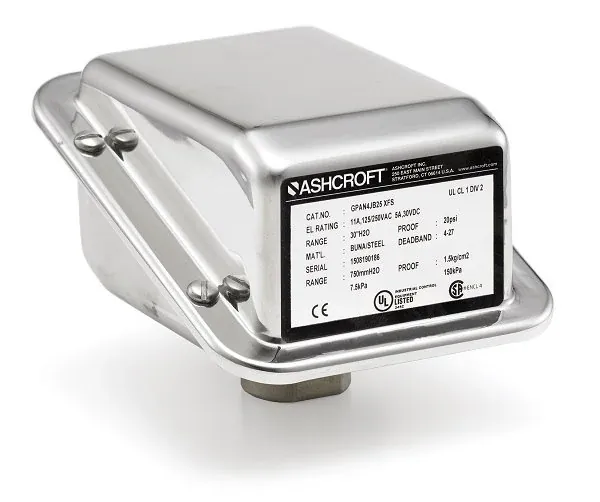

Ashcroft G Series Pressure Switch
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Type
Ashcroft G-Series snap-action pressure switch (GP/GD families; NEMA 4/4X)
Enclosure
G Series 316L stainless steel NEMA 4X / IP66
Setpoint
Adjustable from 15-100% of range; single or dual independent setpoints
Deadband
Fixed or adjustable deadband options
Switch Type
SPDT or 2x SPDT; hermetically sealed micro-switch options (UL Class I Div II)
Set Repeatability
+/-1% of span (typical; plus temperature shift allowance per datasheet)
| المعامل | القيمة |
|---|---|
| Type | Ashcroft G-Series snap-action pressure switch (GP/GD families; NEMA 4/4X) |
| Enclosure | G Series 316L stainless steel NEMA 4X / IP66 |
| Setpoint | Adjustable from 15-100% of range; single or dual independent setpoints |
| Deadband | Fixed or adjustable deadband options |
| Switch Type | SPDT or 2x SPDT; hermetically sealed micro-switch options (UL Class I Div II) |
| Set Repeatability | +/-1% of span (typical; plus temperature shift allowance per datasheet) |
| Pressure Ranges | Vacuum through about 3000 psi class (range codes per ordering table) |
| Wetted | Process connections and diaphragms configurable (SS/Monel options noted on sheet) |
| Electrical | 15 A 125/250 Vac class switch elements (model-dependent) |
| Document | Ashcroft G & L-Series Pressure Switches datasheet |
