Endress+Hauser

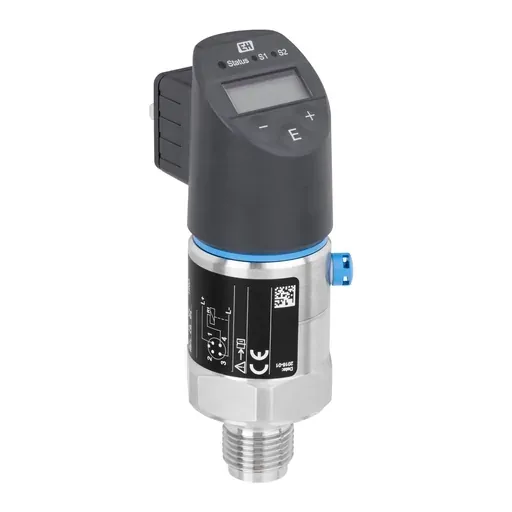

Endress+Hauser Ceraphant PTC31B Pressure Switch
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Measuring range
Gauge/absolute: from 0 to +100 mbar (0 to +1.5 psi) to 0 to +40 bar (0 to +600 psi); OPL max 0 to +60 bar
Accuracy
Reference accuracy standard up to 0.5%; Platinum up to 0.3%
Output
1× PNP switch (3-wire); 2× PNP + IO-Link (4-wire); or 1× PNP + 4–20 mA + IO-Link (4-wire)
Supply
10–30 VDC analog / IO-Link (IO-Link guaranteed ≥18 V)
Process connection
Thread, ANSI thread, M24×1.5, JIS thread
Wetted parts
Housing/process connections 316L; ceramic membrane Ceraphire®
| المعامل | القيمة |
|---|---|
| Measuring range | Gauge/absolute: from 0 to +100 mbar (0 to +1.5 psi) to 0 to +40 bar (0 to +600 psi); OPL max 0 to +60 bar |
| Accuracy | Reference accuracy standard up to 0.5%; Platinum up to 0.3% |
| Output | 1× PNP switch (3-wire); 2× PNP + IO-Link (4-wire); or 1× PNP + 4–20 mA + IO-Link (4-wire) |
| Supply | 10–30 VDC analog / IO-Link (IO-Link guaranteed ≥18 V) |
| Process connection | Thread, ANSI thread, M24×1.5, JIS thread |
| Wetted parts | Housing/process connections 316L; ceramic membrane Ceraphire® |
| Ambient temperature | –20 to +70 °C (–4 to +158 °F) |
| Sensor type | Oil-free ceramic Ceraphire® (Al₂O₃ 99.9%) process membrane |
| Process Temperature | –25 to +100 °C (–13 to +212 °F) at process connection |
| Turn Down | Up to 5:1 |
