Yokogawa
Yokogawa CL300 Series Clamp-On Testers
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Measuring range
CL320: 20/200 mA, 200 A AC; CL340/CL345: 40/400 mA, 400 A AC; CL360: 200 mA / 2 / 20 / 200 / 1000 A AC
Series
Yokogawa 300 Series / CL Series clamp-on testers (CL320, CL340, CL345, CL360 featured for leakage)
Resolution
CL320/CL340/CL345: 0.01 mA (lowest range); CL360: 0.1 mA (lowest range)
Jaw Diameter
CL320 24 mm; CL340/CL345 40 mm; CL360 68 mm measurable conductor
Detection Method
CL320/CL340/CL360 mean value; CL345 True RMS
Frequency Response
CL320 40 Hz–400 Hz; CL340/CL345 20 Hz–1 kHz; CL360 40 Hz–1 kHz
| المعامل | القيمة |
|---|---|
| Measuring range | CL320: 20/200 mA, 200 A AC; CL340/CL345: 40/400 mA, 400 A AC; CL360: 200 mA / 2 / 20 / 200 / 1000 A AC |
| Series | Yokogawa 300 Series / CL Series clamp-on testers (CL320, CL340, CL345, CL360 featured for leakage) |
| Resolution | CL320/CL340/CL345: 0.01 mA (lowest range); CL360: 0.1 mA (lowest range) |
| Jaw Diameter | CL320 24 mm; CL340/CL345 40 mm; CL360 68 mm measurable conductor |
| Detection Method | CL320/CL340/CL360 mean value; CL345 True RMS |
| Frequency Response | CL320 40 Hz–400 Hz; CL340/CL345 20 Hz–1 kHz; CL360 40 Hz–1 kHz |
| Functions | Data hold (all); peak hold (CL340/CL345/CL360); filter switch (CL320+); recorder & waveform monitor output (CL360) |
| Safety | Per Bulletin CL-E EN 61010 category ratings by model (series includes CAT III designs) |
| Product Family | Leakage and AC/AC-DC clamp-on testers — CL Series + 30031A/30032A leakage models |

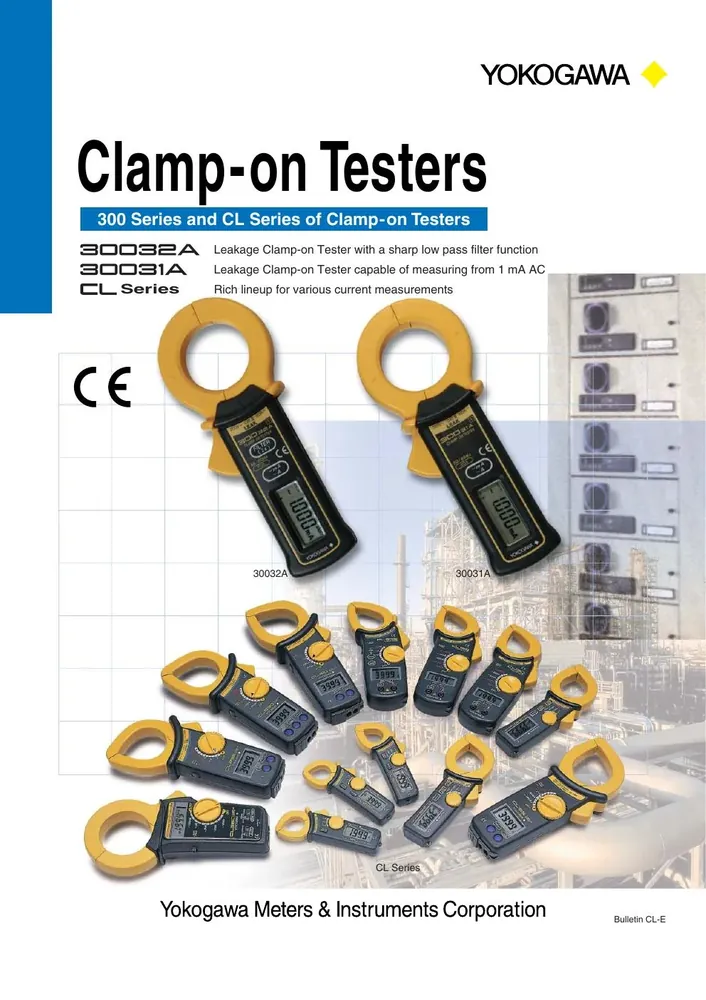

| Document | Bulletin CL-E Clamp-on Testers 300 Series and CL Series |
