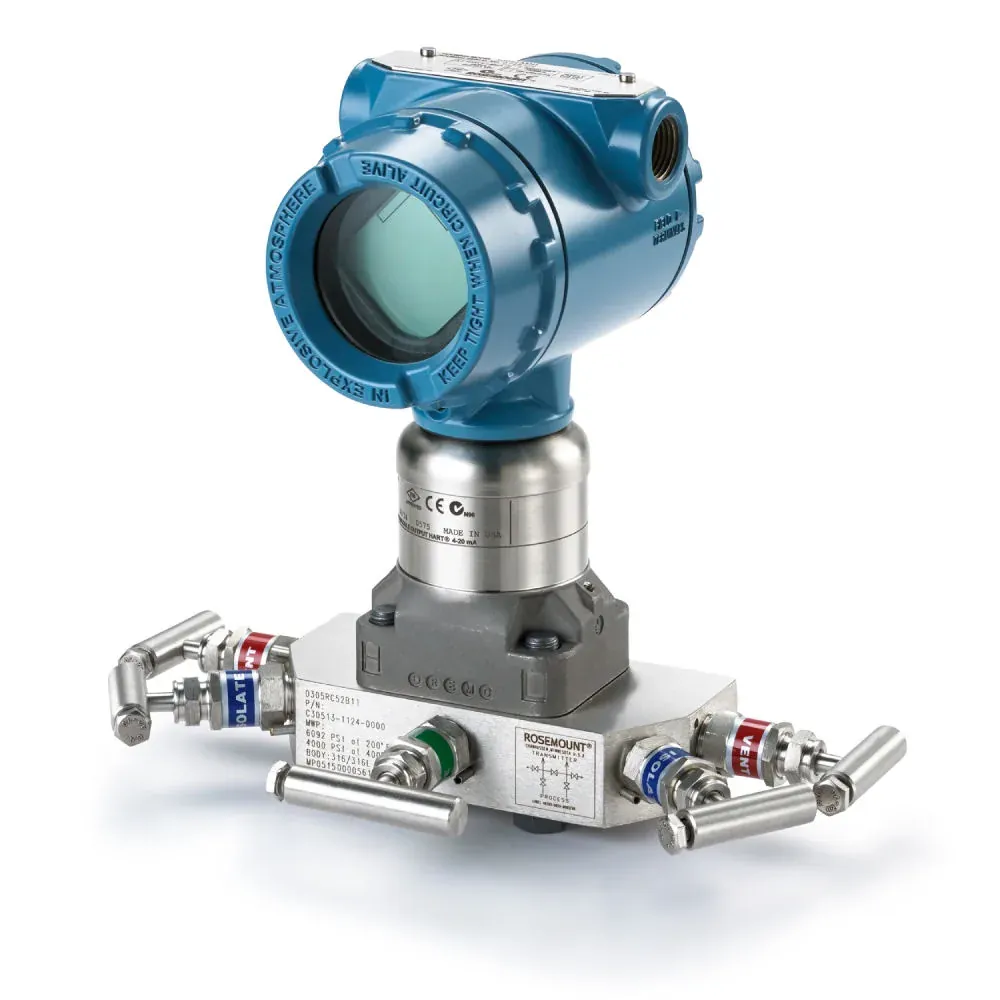

Rosemount 3051S Coplanar Pressure Transmitter
Product
Image unavailable
Image unavailable
Rosemount

Rosemount 3051S Coplanar Pressure Transmitter

SKU · 24477 · 3051S Coplanar · العلامة: Rosemount
متوفر
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF

طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.

المعاملات الرئيسية

Process connection
Coplanar flange (¼–18 NPT / RC ¼ options); integrated manifold/seal capable
Wetted parts
316 SST, Alloy C-276, Alloy 400/K-500 isolating diaphragms (model-code dependent)
Approvals
SIL (QT); hazardous-area options by model code
Platform
Rosemount 3051S Coplanar (not In-Line) — differential, gauge, or absolute
Accuracy Ultra
Ultra performance: 0.025 % span accuracy, 200:1 rangedown, 15-year stability
Accuracy Classic
Classic performance: 0.035 % span accuracy, 150:1 rangedown, 15-year stability
تنزيل ورقة المواصفات PDF
المعاملالقيمة
Process connectionCoplanar flange (¼–18 NPT / RC ¼ options); integrated manifold/seal capable
Wetted parts316 SST, Alloy C-276, Alloy 400/K-500 isolating diaphragms (model-code dependent)
ApprovalsSIL (QT); hazardous-area options by model code
PlatformRosemount 3051S Coplanar (not In-Line) — differential, gauge, or absolute
Accuracy UltraUltra performance: 0.025 % span accuracy, 200:1 rangedown, 15-year stability
Accuracy ClassicClassic performance: 0.035 % span accuracy, 150:1 rangedown, 15-year stability
Accuracy Ultra FlowUltra for Flow: 0.04 % reading accuracy, 200:1 turndown (DP measurement type)
Output Protocols4–20 mA HART; WirelessHART; FOUNDATION Fieldbus
HousingAluminum or SST housing options
DiagnosticsAdvanced HART diagnostics suite (DA2) option
Wireless2.4 GHz DSSS IEC 62591 WirelessHART option
Distinct FromSKU 24477 is Coplanar; distinct from In-Line SKU 22110
