Rosemount

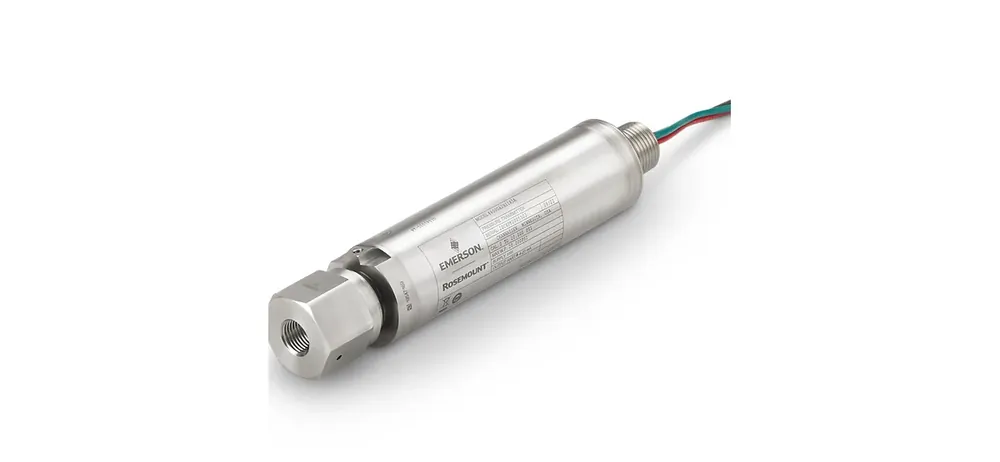

Rosemount 4600 Oil and Gas Panel Transmitter
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Process connection
¼–18 NPT / ½–14 NPT female or coned & threaded (H11)
Design
Compact all-welded stainless steel panel-mount oil & gas pressure transmitter; <2.1 lb (0.95 kg)
Reference Accuracy
±0.25% of calibrated span (range-dependent rangedown limits)
Rangeability
Up to 40:1; spans from ~4 psi to 20,000 psi across four/six range codes
Measurement Types
Gauge (G) or Absolute (A)
Pressure Ranges
Range 1…6 covering 0–4/30 psi up to 0–4000/20,000 psi (H11 cone/thread for highest)
| المعامل | القيمة |
|---|---|
| Process connection | ¼–18 NPT / ½–14 NPT female or coned & threaded (H11) |
| Design | Compact all-welded stainless steel panel-mount oil & gas pressure transmitter; <2.1 lb (0.95 kg) |
| Reference Accuracy | ±0.25% of calibrated span (range-dependent rangedown limits) |
| Rangeability | Up to 40:1; spans from ~4 psi to 20,000 psi across four/six range codes |
| Measurement Types | Gauge (G) or Absolute (A) |
| Pressure Ranges | Range 1…6 covering 0–4/30 psi up to 0–4000/20,000 psi (H11 cone/thread for highest) |
| Materials | 316L SST or Alloy C-276 isolating diaphragm; NACE MR0175/ISO 15156 suitable |
| Stability | Installed stability ±0.25% of URL up to 5 years (product page) |
| Enclosure | Hermetic all-welded SST for salt spray / humidity resistance |
| Application | Oil and gas wellhead / panel pressure monitoring |
| Document | PDS 00813-0100-4022 Rev PA (Jan 2022) |
