Rosemount

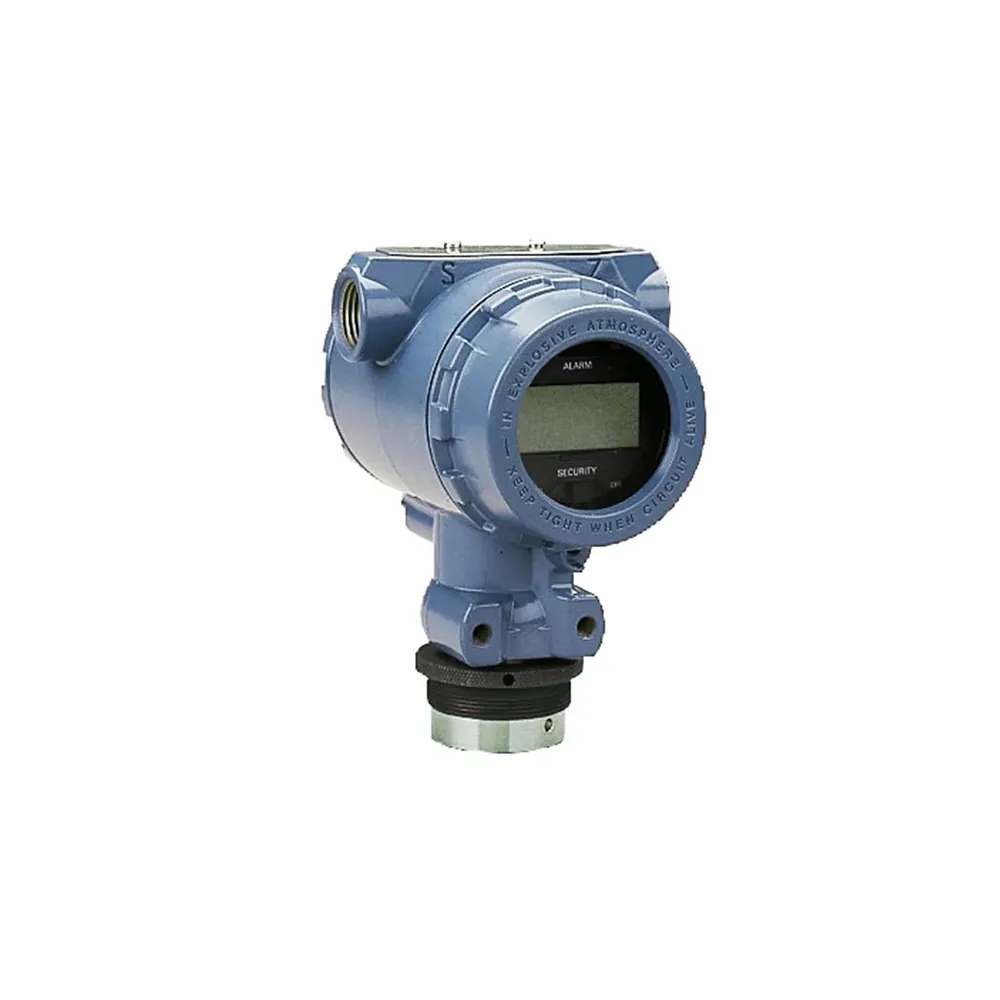

Rosemount 2090P Pulp and Paper Transmitter
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Accuracy
Standard ±0.20% of span; P8 high-accuracy option ±0.10% to 10:1
Process connection
1-inch flush mount (PMC compatible) or 1½-inch threaded
Pressure type
Absolute or gauge
Approvals
Hazardous-location / product certifications per PDS
Mounting
Weld spud; upright/horizontal mounting practices per QSG/manual
Type
Pulp and paper flush-mount pressure transmitter (Rosemount 2090P)
| المعامل | القيمة |
|---|---|
| Accuracy | Standard ±0.20% of span; P8 high-accuracy option ±0.10% to 10:1 |
| Process connection | 1-inch flush mount (PMC compatible) or 1½-inch threaded |
| Pressure type | Absolute or gauge |
| Approvals | Hazardous-location / product certifications per PDS |
| Mounting | Weld spud; upright/horizontal mounting practices per QSG/manual |
| Type | Pulp and paper flush-mount pressure transmitter (Rosemount 2090P) |
| Application | Viscous / crystallizing / pulp-and-paper processes; flush diaphragm avoids clogging |
| Document | PDS 00813-0100-4699 Rev HG + Manual 2088/2090P/2090F (dl-rmt-2088) |
| Loop | HART requires ≥250 Ω loop resistance |
| Family | Related to Rosemount 2088 / 2090F compact pressure transmitters |
