Setra

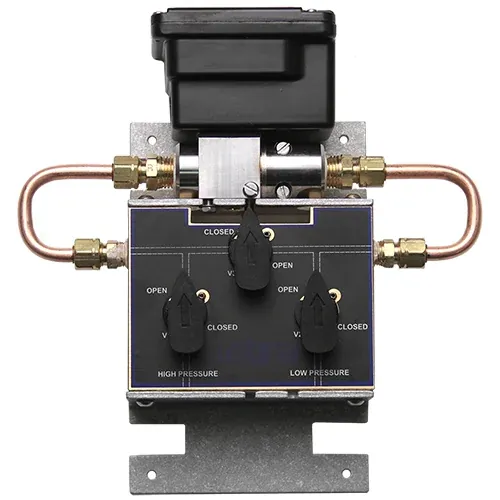

Setra 230 Differential Pressure Transducer
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Accuracy
+/-0.25% FS RSS at constant temperature
Type
Setra Model 230 true wet-to-wet differential pressure transducer (single stainless capacitive diaphragm)
Ranges
Unidirectional about 0-1 to 0-100 PSID; bidirectional options; line pressure to 350 PSIG
Outputs
0-5 VDC, 0-10 VDC, or 4-20 mA
Excitation
9-30 VDC (0-5 V); 13-30 VDC (0-10 V); loop powered for 4-20 mA
Response Time
30 to 50 milliseconds
| المعامل | القيمة |
|---|---|
| Accuracy | +/-0.25% FS RSS at constant temperature |
| Type | Setra Model 230 true wet-to-wet differential pressure transducer (single stainless capacitive diaphragm) |
| Ranges | Unidirectional about 0-1 to 0-100 PSID; bidirectional options; line pressure to 350 PSIG |
| Outputs | 0-5 VDC, 0-10 VDC, or 4-20 mA |
| Excitation | 9-30 VDC (0-5 V); 13-30 VDC (0-10 V); loop powered for 4-20 mA |
| Response Time | 30 to 50 milliseconds |
| Process Fittings | 1/4-18 NPT internal; optional 3- or 5-valve brass manifold |
| Housing | NEMA 4 stainless steel / aluminum case |
| Compensated Temperature | +30 to +150 F (-1 to +65 C) |
| Media | Gas and liquid compatible; no liquid-fill diaphragm |
| Weight | About 14.4 oz (transducer); manifold assemblies <2.5 lb class |
| Document | Setra Model 230 Data Sheet + Operating Instructions (setra.com hubfs) |
