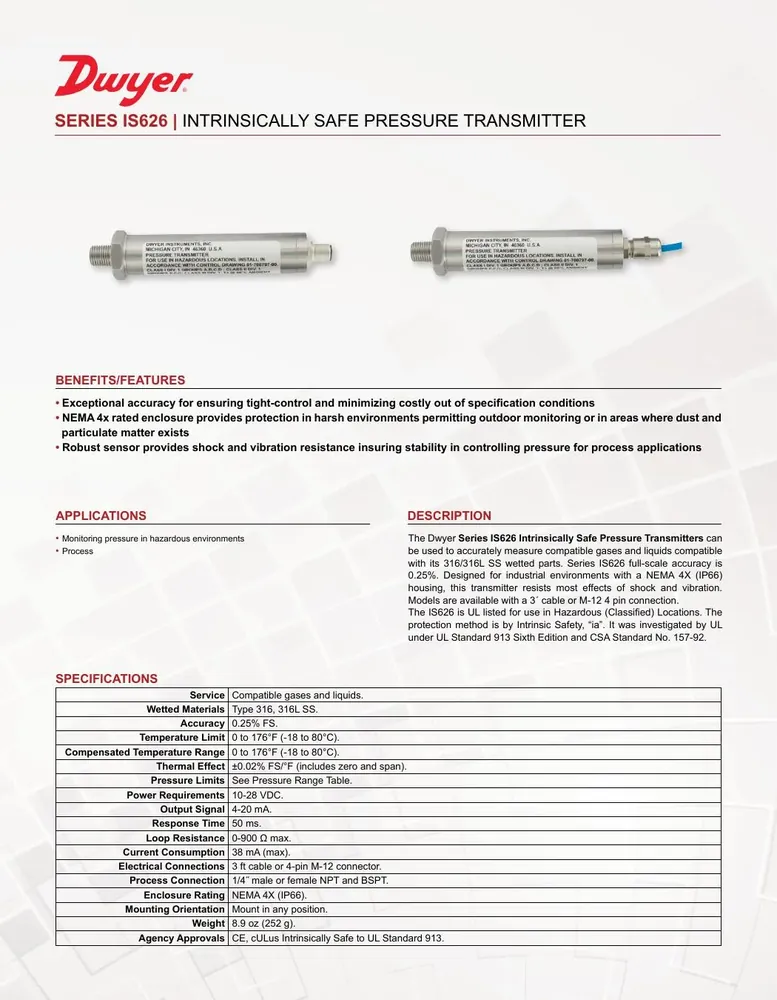

Dwyer Series IS626 Intrinsically Safe Pressure Transmitter

SKU · 24038 · IS626 · العلامة: Dwyer Instruments

متوفر

السعر عند الطلب

بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض

الكمية

طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.

المعاملات الرئيسية

Measuring range

Gauge ranges 15–1500 psig and 15 psia absolute (model chart); e.g. IS626-07 15 psig to IS626-16 1500 psig

Accuracy

0.25% FS (absolute ranges 0.5% FS); includes linearity, hysteresis, repeatability

Output

4–20 mA

Supply

10–28 VDC; loop resistance 0–900 Ω; max current 38 mA

Process connection

1/4 in male or female NPT and BSPT

Electrical connection

3 ft cable or 4-pin M-12 connector

المعامل	القيمة
Measuring range	Gauge ranges 15–1500 psig and 15 psia absolute (model chart); e.g. IS626-07 15 psig to IS626-16 1500 psig
Accuracy	0.25% FS (absolute ranges 0.5% FS); includes linearity, hysteresis, repeatability
Output	4–20 mA
Supply	10–28 VDC; loop resistance 0–900 Ω; max current 38 mA
Process connection	1/4 in male or female NPT and BSPT
Electrical connection	3 ft cable or 4-pin M-12 connector
Wetted parts	Type 316 / 316L stainless steel
Protection	NEMA 4X (IP66)
Ambient temperature	0 to 176 °F (−18 to 80 °C); compensated same range
Approvals	CE; cULus Intrinsically Safe UL 913; Class I Div 1 Groups A,B,C,D; Class II Div 1 Groups E,F,G; Class III Div 1; T4 @ 80 °C
Enclosure Material	Industrial transmitter housing
Thermal Effect	±0.02% FS/°F (zero and span)
Response Time	50 ms
Special Features	Intrinsic Safety ia; shock/vibration resistant; mount in any orientation; weight 8.9 oz (252 g)
