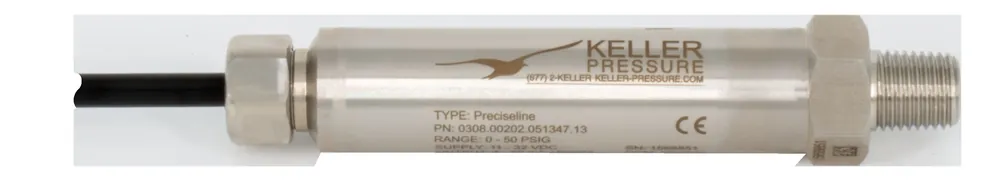

Keller Preciseline High Accuracy Pressure Transmitter

SKU · 34150 · Preciseline · العلامة: Keller

متوفر

السعر عند الطلب

بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض

الكمية

طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.

المعاملات الرئيسية

Measuring range

Relative infinite between 0…2 and 0…450 PSIG; absolute 0…2 to 0…450 PSIA; sealed 0…500 to 0…15,000 PSIS

Accuracy

Static ±0.1 %FS (optional ±0.05 %FS); Total Error Band ±0.25 %BR (optional ±0.1 %BR)

Accuracy % FS

0.1

Output

4–20 mA; 0–5 VDC; 0–10 VDC; dual output with RS485 Modbus RTU

Supply

8…32 VDC (4–20 mA / 0–5 V); 13…32 VDC (0–10 V); IS variants per datasheet

Process connection

1/4"-18 NPT Male (others on request)

المعامل	القيمة
Measuring range	Relative infinite between 0…2 and 0…450 PSIG; absolute 0…2 to 0…450 PSIA; sealed 0…500 to 0…15,000 PSIS
Accuracy	Static ±0.1 %FS (optional ±0.05 %FS); Total Error Band ±0.25 %BR (optional ±0.1 %BR)
Accuracy % FS	0.1
Output	4–20 mA; 0–5 VDC; 0–10 VDC; dual output with RS485 Modbus RTU
Supply	8…32 VDC (4–20 mA / 0–5 V); 13…32 VDC (0–10 V); IS variants per datasheet
Process connection	1/4"-18 NPT Male (others on request)
Electrical connection	Cable; DIN43650; mPm393; MIL-C 26482; M12
Wetted parts	316L stainless steel; optional titanium
Housing	316L stainless steel
Protection	Cable IP68; M12 IP67; connector versions IP65 (per connection)
Ambient temperature	Operating −20…+85 °C (connector) / −10…+60 °C (cable); compensated −10…+80 °C
Pressure type	gauge
Display	none
Communication	RS485 Modbus RTU (dual-output models)
Approvals	UL/cUL intrinsically safe options; NSF/ANSI 61 & 372 (selected ranges)
Hazardous area	UL/cUL IS options for hazardous locations (model-dependent)
Mounting	Direct process mount (above-ground)
Notes	OEM Preciseline datasheet Edition 08/2026 via us.keller-pressure.com file-cache. Dual analog+digital family; not Preciseline SDI SKU.
Overpressure Limit	Proof: ≤1500 PSI FS → 3× FS; >1500…≤9000 → 2× FS; >9000…≤15,000 → 1.2× FS
