APG Automation Products Group

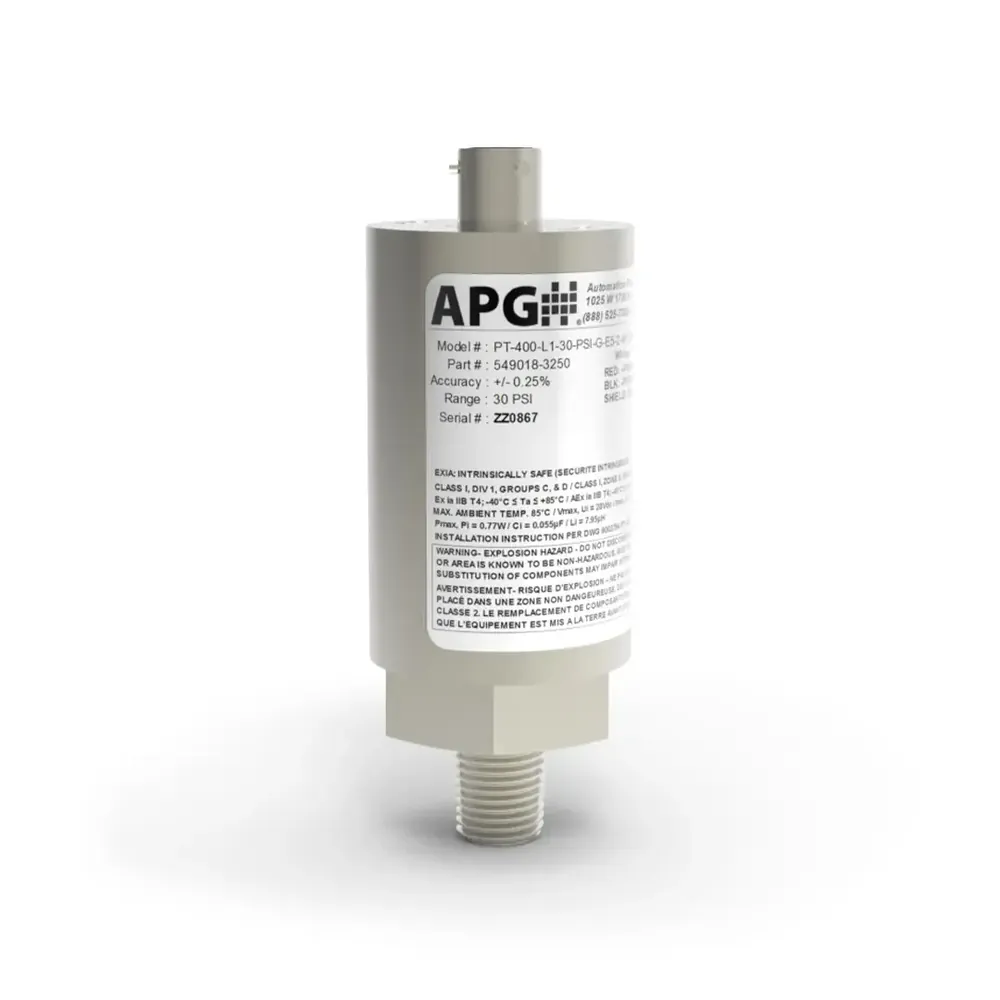

APG Automation Products Group PT-400 Pressure Transducer
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Accuracy
+/-0.25% FS BFSL (1% for <=1 psi)
Approvals
cCSAus hazardous location; single-seal safety factor
Type
Intrinsically safe heavy-duty pressure transmitter (PT-400 / PT-400Y)
Ranges
0 to 30,000 psi
Outputs
4-20 mA; 0-5 / 0.5-4.5 / 1-5 / 0-10 / 1-10 VDC; Modbus RTU RS-485
Overpressure
2x FS or fitting limit; burst 3x FS or fitting limit
| المعامل | القيمة |
|---|---|
| Accuracy | +/-0.25% FS BFSL (1% for <=1 psi) |
| Approvals | cCSAus hazardous location; single-seal safety factor |
| Type | Intrinsically safe heavy-duty pressure transmitter (PT-400 / PT-400Y) |
| Ranges | 0 to 30,000 psi |
| Outputs | 4-20 mA; 0-5 / 0.5-4.5 / 1-5 / 0-10 / 1-10 VDC; Modbus RTU RS-485 |
| Overpressure | 2x FS or fitting limit; burst 3x FS or fitting limit |
| Operating Temp | -40 to 80 C (-40 to 176 F) class |
| Response | Analog frequency response <5 ms |
| Materials | 316L / 17-4 / Incoloy wetted materials by range |
| Document | APG PT-400Y data sheet 9007012A |
