Endress+Hauser

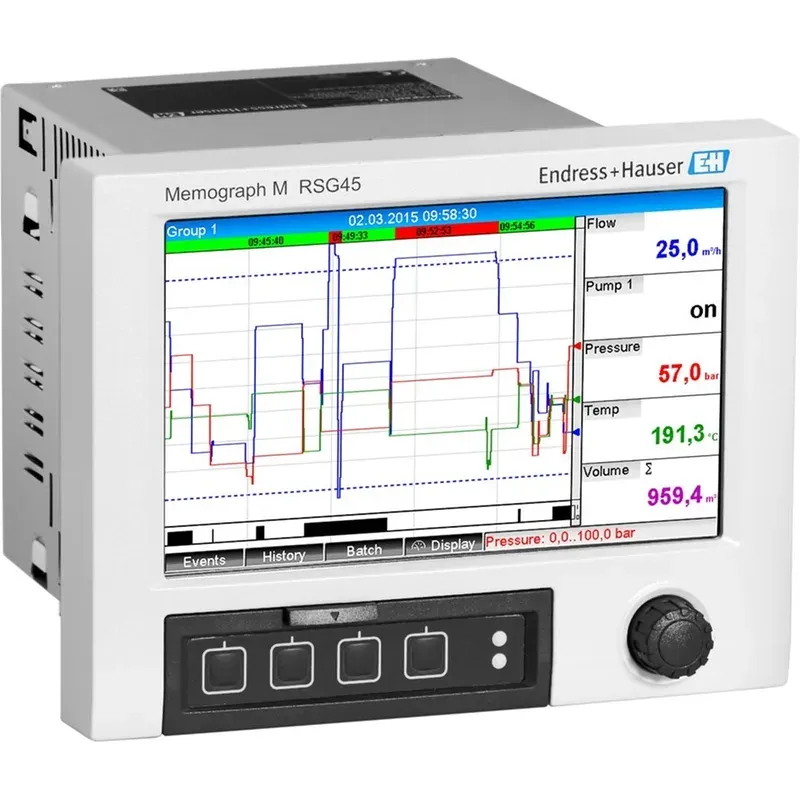

Endress+Hauser Memograph M RSG45 Advanced Data Manager
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Measuring range
Up to 20 universal/HART analog inputs and 14 digital inputs (modular)
Output
Up to 2 analog outputs; up to 12 relays; 1 transmitter power supply
Protection
IP65 front-panel (panel-mount versions)
Display
7 in TFT color graphic display; optional stainless-steel front with touch; DIN-rail version without display
Communication
RS232/485, Ethernet, USB, Modbus RTU/TCP, Profibus DP, PROFINET, EtherNet/IP
Approvals
UL (US/CA); ATEX Ex px / Ex pD; EAC; PROFINET certified; FDA 21 CFR 11 features
| المعامل | القيمة |
|---|---|
| Measuring range | Up to 20 universal/HART analog inputs and 14 digital inputs (modular) |
| Output | Up to 2 analog outputs; up to 12 relays; 1 transmitter power supply |
| Protection | IP65 front-panel (panel-mount versions) |
| Display | 7 in TFT color graphic display; optional stainless-steel front with touch; DIN-rail version without display |
| Communication | RS232/485, Ethernet, USB, Modbus RTU/TCP, Profibus DP, PROFINET, EtherNet/IP |
| Approvals | UL (US/CA); ATEX Ex px / Ex pD; EAC; PROFINET certified; FDA 21 CFR 11 features |
| Storage | Internal memory, SD card, USB flash drive; WebDAV file access |
| Calculations | Mass/heat quantity and heat quantity difference; IAPWS-97 water/steam energy option |
| Power Supply | 100–230 V AC ±10% or 24 V AC/DC (−10%/+15%) |
| Scan Rate | 100 ms scan; high-speed storage cycle 100 ms |
| Housing | Panel mount zinc die-cast or SS bezel; desktop; field housing; DIN-rail compact |
| Dimensions | Approx. 195.2 × 149.2 × 227.1 mm (panel version) |
| Special Features | HART input card/gateway; integrated web server; tamper-proof storage with e-signature; software packages for batch/energy/wastewater/tele-alarm |
