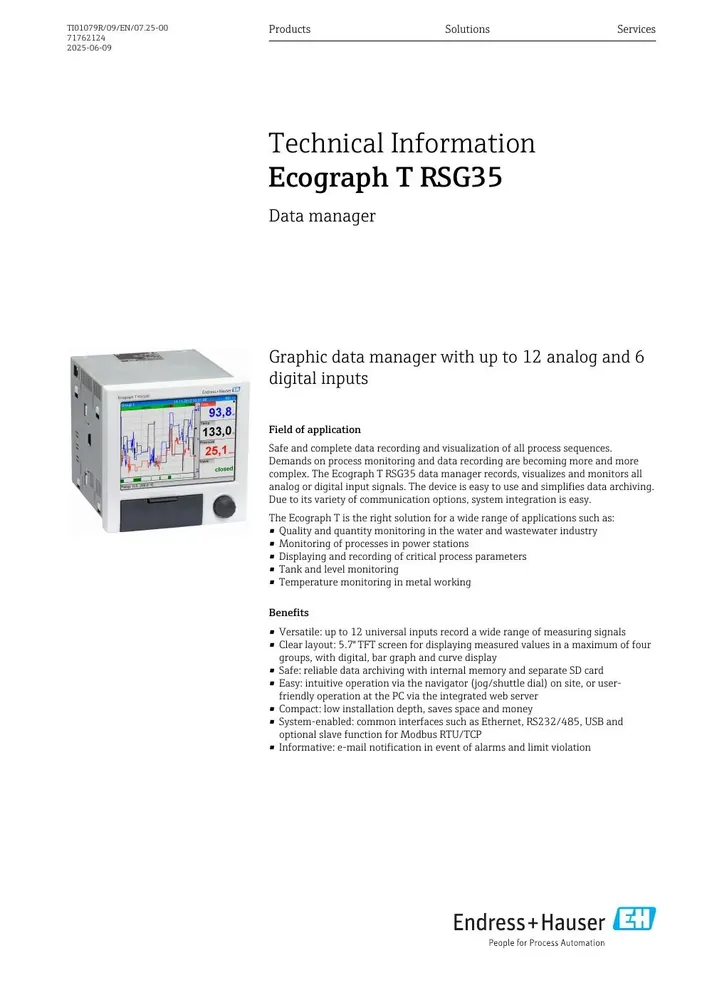

Endress+Hauser Ecograph T RSG35 Universal Graphic Data Manager

SKU · 45977 · Ecograph T RSG35 · العلامة: Endress+Hauser

متوفر

السعر عند الطلب

بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض

الكمية

طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.

المعاملات الرئيسية

Measuring range

Up to 12 analog universal inputs (U/I/RTD/TC/pulse/frequency) via optional 4-input cards; 6 digital inputs; 4 math channels optional

Accuracy

Universal inputs typically ±0.1% of measuring range (oMR) for current/voltage; RTD/TC per TI tables

Output

Auxiliary voltage output and relay outputs per TI

Supply

Per TI electrical connection (device power options)

Protection

Per selected housing option in TI

Ambient temperature

Per TI environment section for panel/field/desktop housings

المعامل	القيمة
Measuring range	Up to 12 analog universal inputs (U/I/RTD/TC/pulse/frequency) via optional 4-input cards; 6 digital inputs; 4 math channels optional
Accuracy	Universal inputs typically ±0.1% of measuring range (oMR) for current/voltage; RTD/TC per TI tables
Output	Auxiliary voltage output and relay outputs per TI
Supply	Per TI electrical connection (device power options)
Protection	Per selected housing option in TI
Ambient temperature	Per TI environment section for panel/field/desktop housings
Display	5.7 in TFT; up to four groups with digital, bar graph and curve display
Approvals	Certificates and approvals per TI01079R
Storage	Internal memory plus separate SD card for secure archiving
Communications	Ethernet, RS232/485, USB; optional Modbus RTU/TCP slave; integrated web server; e-mail on alarm
Enclosure Material	Panel-mount compact data manager; optional field and desktop housings
Limit Values	30 limit values with individual channel assignment
Special Features	Navigator jog/shuttle local operation; low installation depth; multi-language HMI
Inputs	Current 0/4–20 mA; voltage to ±30 V; RTD Pt/Cu families; TC types J/K/L/N/T/A/B/C/D/R/S; pulse to 12.5 kHz; frequency to 10 kHz
