CHINO

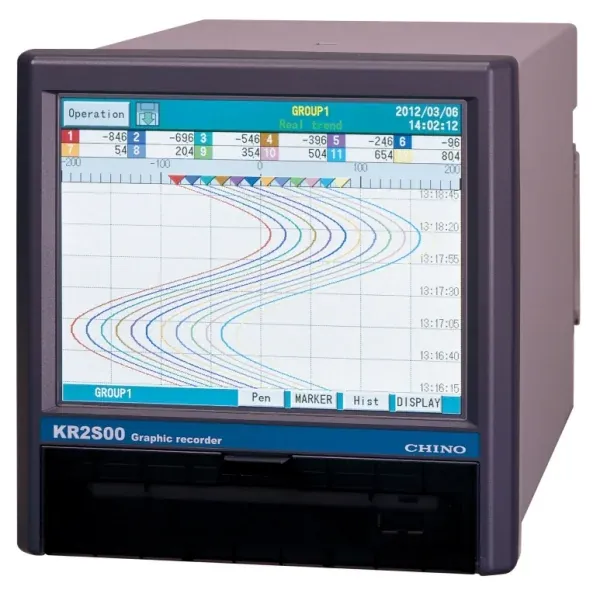

CHINO KR2S Series Graphic Recorder
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Accuracy
+/-0.1%
Display
5.7 in VGA TFT color LCD (640x480); keyless touch operation
Mounting
Panel mounting or portable/table-top with carrying handle options
Type
Paperless graphic recorder with touch panel (KR2S Series)
Inputs
Universal: DC voltage/current, thermocouple, RTD; 1 kV insulation between channels
Channels Sampling
6 points / 1 s or 12 points / 1 s; about 100 ms for 4 points when cycle less than 500 ms
| المعامل | القيمة |
|---|---|
| Accuracy | +/-0.1% |
| Display | 5.7 in VGA TFT color LCD (640x480); keyless touch operation |
| Mounting | Panel mounting or portable/table-top with carrying handle options |
| Type | Paperless graphic recorder with touch panel (KR2S Series) |
| Inputs | Universal: DC voltage/current, thermocouple, RTD; 1 kV insulation between channels |
| Channels Sampling | 6 points / 1 s or 12 points / 1 s; about 100 ms for 4 points when cycle less than 500 ms |
| Memory | USB and CF card standard about 2 GB; expandable up to 8 GB |
| Networking | Ethernet standard (browser monitor, FTP, HTTP, SNTP, DHCP, e-mail); optional RS485 |
| Front Usb | Front USB port for memory stick data/files |
| Document | CHINO KR2S Series specification PSE-801 |
