Hedland

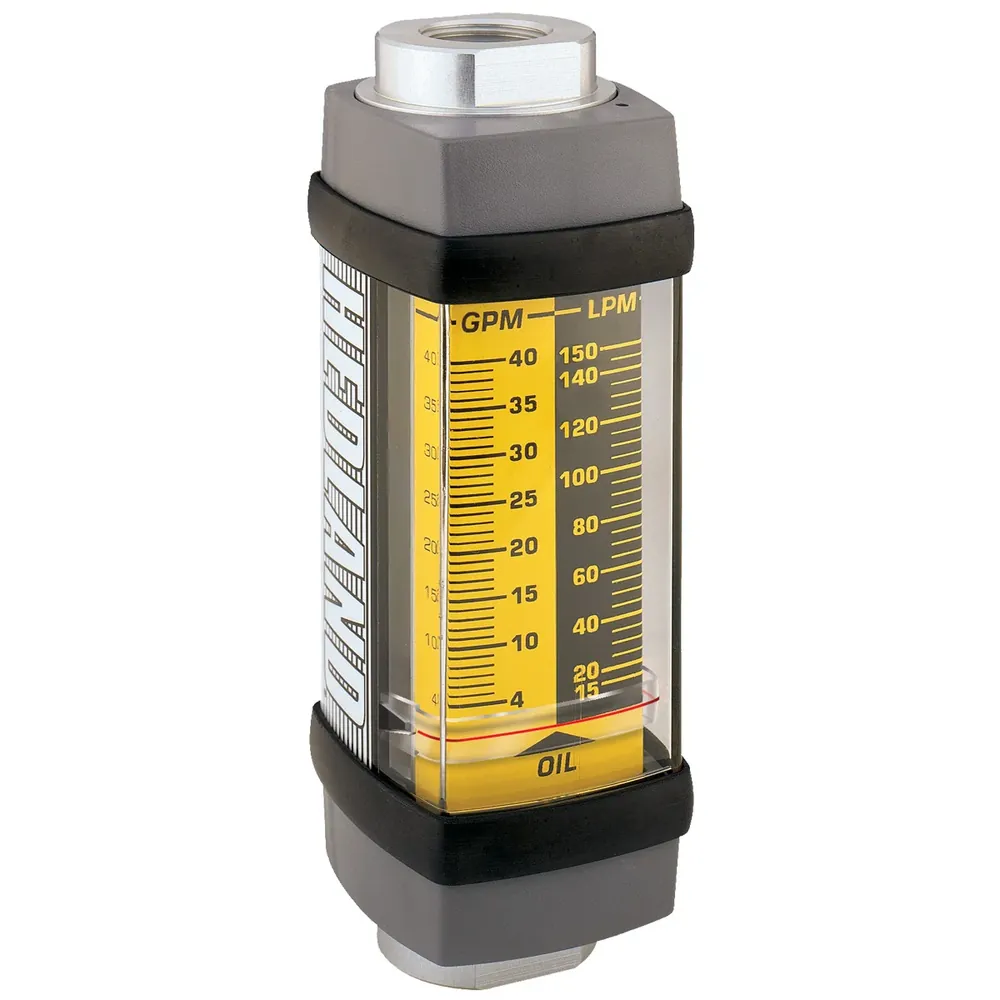

Hedland Flow Meter for Petroleum Fluids
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Accuracy
±2% of full scale (±7% on ¼ in models)
Mounting
Any orientation without affecting accuracy; no electronics required
Type
Inline variable-area flow meter for petroleum / hydraulic fluids (Hedland)
Size Range
6–80 mm (¼–3 in) connection sizes
Flow Range
0.1–1100 L/min (0.02–300 gpm)
Temperature Range
−29 to 116 °C (−20 to 240 °F)
| المعامل | القيمة |
|---|---|
| Accuracy | ±2% of full scale (±7% on ¼ in models) |
| Mounting | Any orientation without affecting accuracy; no electronics required |
| Type | Inline variable-area flow meter for petroleum / hydraulic fluids (Hedland) |
| Size Range | 6–80 mm (¼–3 in) connection sizes |
| Flow Range | 0.1–1100 L/min (0.02–300 gpm) |
| Temperature Range | −29 to 116 °C (−20 to 240 °F) |
| Pressure Range | Up to 414 bar (6000 psi) |
| Indication | Direct-reading linear scale; magnetic coupling (no mechanical linkages) |
| Media | Petroleum oils and hydraulic fluids |
| Document | Hedland VA catalog + Inline Liquid Flow Meter UM VAM-UM-00551 |
