King Instrument

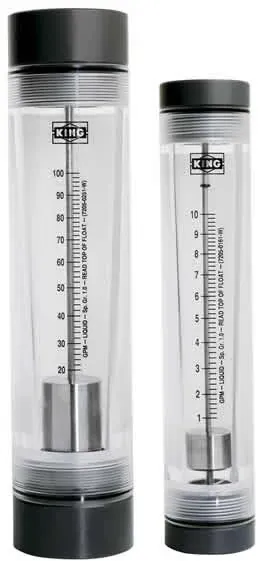

King Instrument 7200 Series Acrylic Tube Flowmeter
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Accuracy
±3–6% full scale class
Type
Acrylic-tube vertical NPT rotameter (7200 Series)
Water Range
About 1–200 GPM class (model dependent)
Air Range
About 4–245 SCFM class (model dependent)
Connections
3/8 in to 2 in NPT class
Scale
127 mm direct-reading scale
| المعامل | القيمة |
|---|---|
| Accuracy | ±3–6% full scale class |
| Type | Acrylic-tube vertical NPT rotameter (7200 Series) |
| Water Range | About 1–200 GPM class (model dependent) |
| Air Range | About 4–245 SCFM class (model dependent) |
| Connections | 3/8 in to 2 in NPT class |
| Scale | 127 mm direct-reading scale |
| Repeatability | 1–2% class; typical 10:1 turndown |
| Ratings Water | Up to ~130 °F / 150 psig class |
| Ratings Air | Up to ~100 °F / 125 psig class |
| Document | King Catalog 7200 Series |
