King Instrument

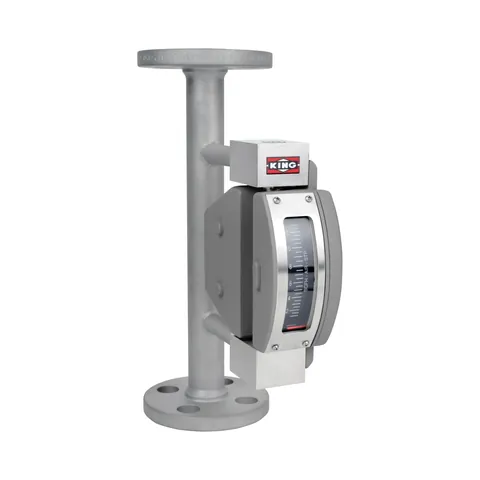

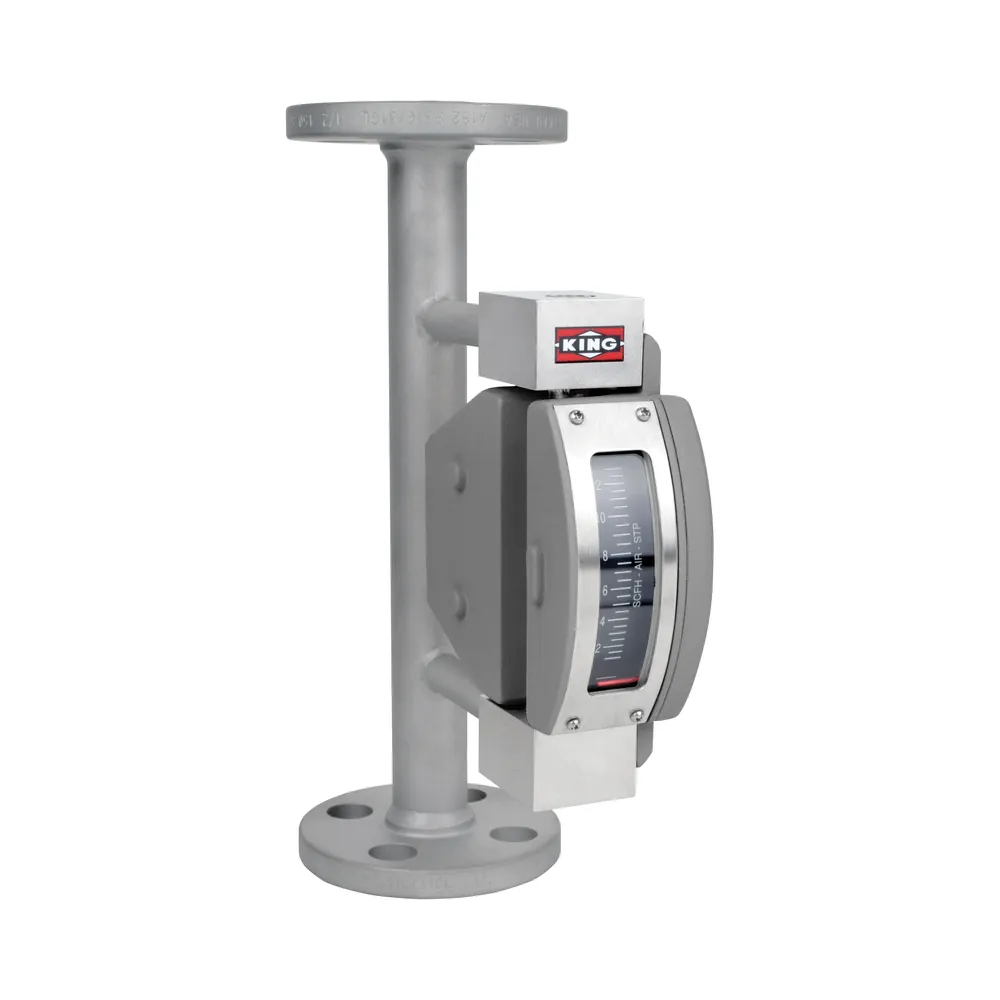

King Instrument 7100 Series Rotameter
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Accuracy
+/-5% of full scale
Type
Stainless steel tube variable-area flowmeter / rotameter (7100 Series)
Metering Tube
316L SS
Internals
316L SS and Hastelloy C-276
Flow Water
0.6 to 25 GPH (2.4 to 95 LPH)
Flow Air
1 to 120 SCFH (28.3 to 3400 SLPH)
| المعامل | القيمة |
|---|---|
| Accuracy | +/-5% of full scale |
| Type | Stainless steel tube variable-area flowmeter / rotameter (7100 Series) |
| Metering Tube | 316L SS |
| Internals | 316L SS and Hastelloy C-276 |
| Flow Water | 0.6 to 25 GPH (2.4 to 95 LPH) |
| Flow Air | 1 to 120 SCFH (28.3 to 3400 SLPH) |
| Repeatability | 1% |
| Turndown | 10:1 |
| Connections | 1/4 in FNPT horizontal; 1/2 in and 1 in 150#/300# flanges vertical |
| Pressure | Valve models 1500 psig; non-valve 4000 psig (FNPT) |
| Ambient | -40 F to 125 F (-40 C to 52 C) |
| Document | King Instrument Company 7100 Series catalog page (King-Catalog-2026-7100.pdf) |
