Georg Fischer / GF Signet

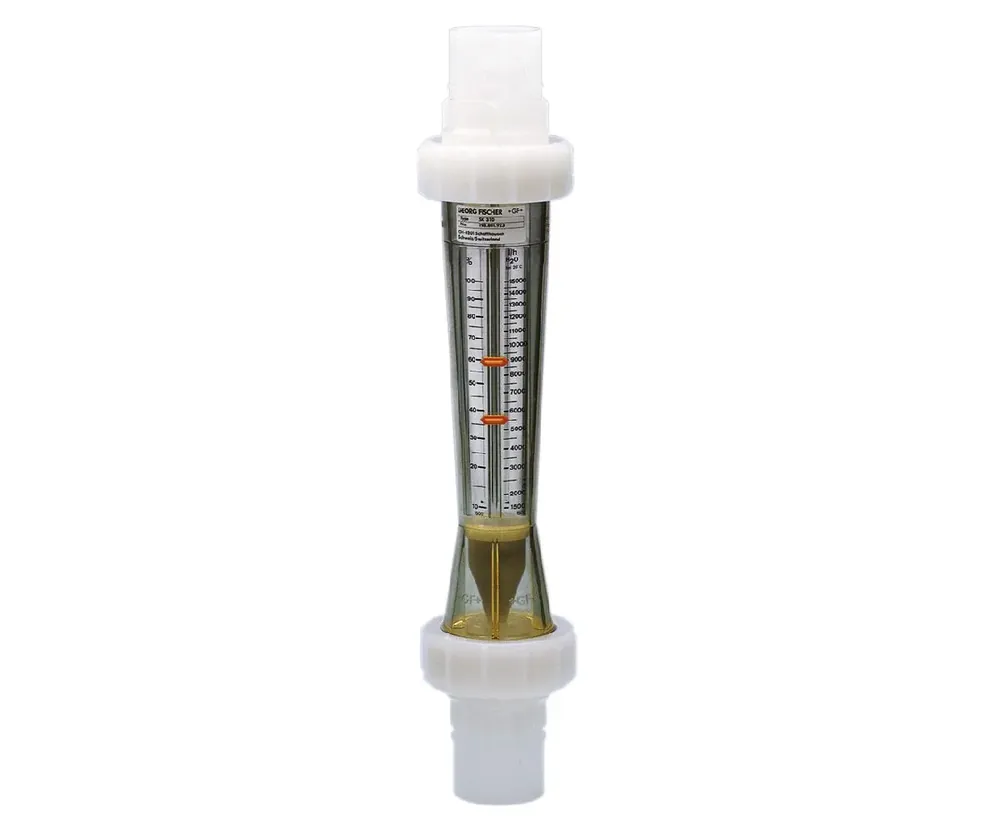

Georg Fischer 807 Series Rotameter
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Accuracy
Accuracy class 4 per VDE/DIN 3513 sheet 2 (G=5% / qG=50% tables in TI)
Mounting
Radial install / dismountable short metering tube
Measuring Principle
Variable area (rotameter) short-tube Type 123 / SK
Scale Range Short
2.5 to 1,000 l/h (SK50–SK73 family)
Pipe Size Range
d16/DN10 to d32/DN25 (3/8 in to 1 in)
Pressure Rating
PN10
| المعامل | القيمة |
|---|---|
| Accuracy | Accuracy class 4 per VDE/DIN 3513 sheet 2 (G=5% / qG=50% tables in TI) |
| Mounting | Radial install / dismountable short metering tube |
| Measuring Principle | Variable area (rotameter) short-tube Type 123 / SK |
| Scale Range Short | 2.5 to 1,000 l/h (SK50–SK73 family) |
| Pipe Size Range | d16/DN10 to d32/DN25 (3/8 in to 1 in) |
| Pressure Rating | PN10 |
| Taper Tube Materials | PVC-U transparent or PSU (Type 123 short) |
| Float Materials | PVDF / PTFE (special); historical 807 Series used SS 1.4571 float variants |
| Gasket Material | EPDM or FKM O-rings |
| Connections | PVC-U solvent cement sockets (additional materials on request) |
| Article Code Family | 198 807 nnn short-version article codes in GF product range |
