KROHNE

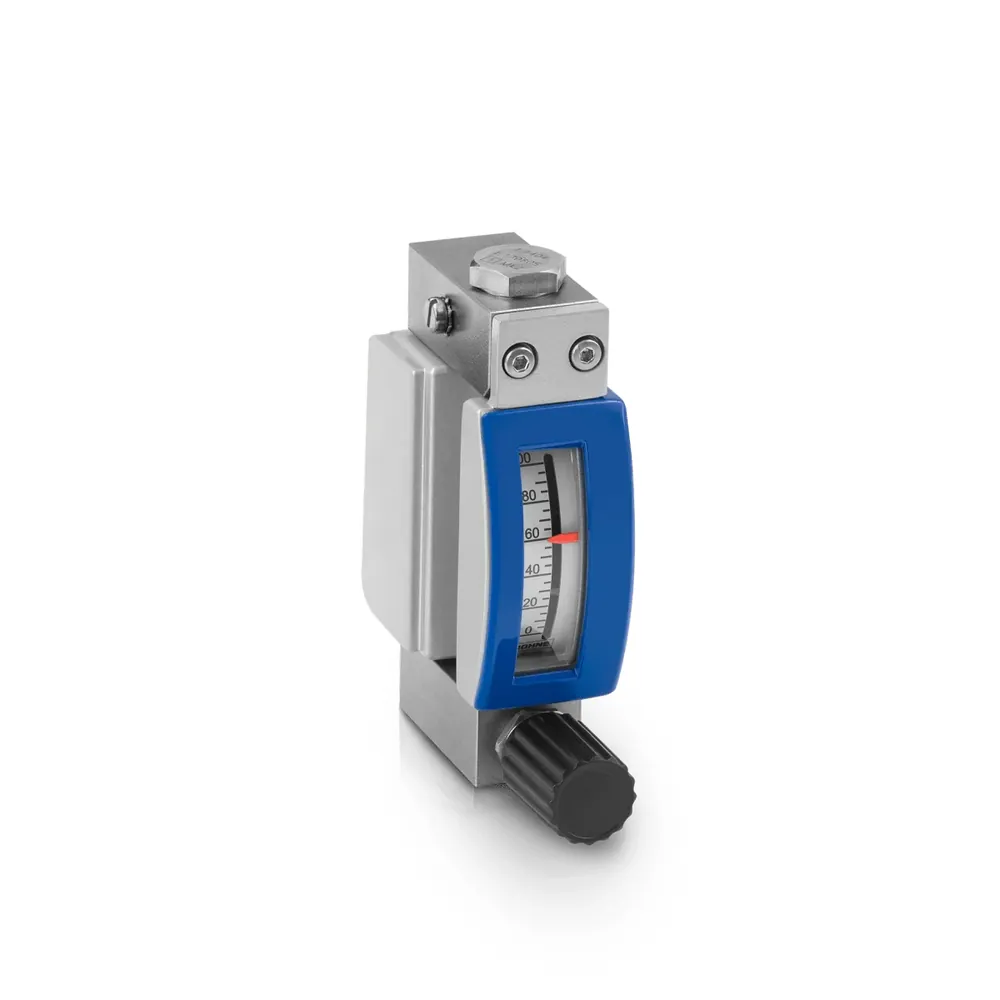

KROHNE DK32 Variable Area Flowmeter
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Type
All-metal variable-area flowmeter / rotameter (DK32)
Media
Low liquid and gas flows
Liquid Range
Up to ~150 l/h (model/float dependent; see TD)
Gas Range
Up to ~4800 l/h (model/float dependent; see TD)
Process Conditions
Temperature to +200 °C; pressure to ~220 barg class (see TD)
Connections
Horizontal rear process connections; optional needle valve
| المعامل | القيمة |
|---|---|
| Type | All-metal variable-area flowmeter / rotameter (DK32) |
| Media | Low liquid and gas flows |
| Liquid Range | Up to ~150 l/h (model/float dependent; see TD) |
| Gas Range | Up to ~4800 l/h (model/float dependent; see TD) |
| Process Conditions | Temperature to +200 °C; pressure to ~220 barg class (see TD) |
| Connections | Horizontal rear process connections; optional needle valve |
| Indication | Mechanical local indication; optional limit switches or 4–20 mA/HART |
| Document | KROHNE TD DK32/34/37 R10 + MA DK32/34/37 R10 |
