Michell Instruments

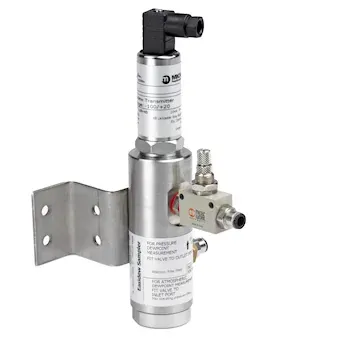

Michell Instruments Easidew Sampler Dew-Point Sampling System
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Mounting
Self-contained sampler module
Type
Self-contained dew-point sampling system (Easidew Sampler)
Filter
Integrated 0.3 μm particulate filter
Flow
1–5 L/min with flow-control valve
Block
Single stainless-steel sampling block
Pressure Std
Atmospheric or line pressure to 1 MPa (10 barg)
| المعامل | القيمة |
|---|---|
| Mounting | Self-contained sampler module |
| Type | Self-contained dew-point sampling system (Easidew Sampler) |
| Filter | Integrated 0.3 μm particulate filter |
| Flow | 1–5 L/min with flow-control valve |
| Block | Single stainless-steel sampling block |
| Pressure Std | Atmospheric or line pressure to 1 MPa (10 barg) |
| Pressure Hp | Optional high-pressure version to 21 MPa (210 barg) |
| Use | Conditioned sample to Easidew dew-point transmitters |
| Brand Group | Process Sensing Technologies / Michell |
| Document | Easidew Sampler 97165 US Datasheet v2.1 |
