Dwyer Instruments
Dwyer Instruments TAC-L Tachometer
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Accuracy
+/-(0.05% + 1 digit)
Display
Backlit LCD; 5 digits; 0.7 in (1.8 cm) character height
Type
Dwyer Model TAC-L portable contact / photo non-contact digital tachometer
Non Contact Rpm
2.5 to 99,999 RPM
Contact Rpm
0.5 to 19,999 RPM
Surface Speed
0.05 to 1999.9 m/min
| المعامل | القيمة |
|---|---|
| Accuracy | +/-(0.05% + 1 digit) |
| Display | Backlit LCD; 5 digits; 0.7 in (1.8 cm) character height |
| Type | Dwyer Model TAC-L portable contact / photo non-contact digital tachometer |
| Non Contact Rpm | 2.5 to 99,999 RPM |
| Contact Rpm | 0.5 to 19,999 RPM |
| Surface Speed | 0.05 to 1999.9 m/min |
| Non Contact Distance | 2 to 20 in (5 to 50 cm) |
| Sampling Time | 0.8 s |
| Temperature Limits | 32 to 122 F (0 to 50 C) |
| Power | 4x 1.5 V AA alkaline (user supplied) |
| Weight | 1.37 lb (0.620 kg) |
| Agency | CE, RoHS |

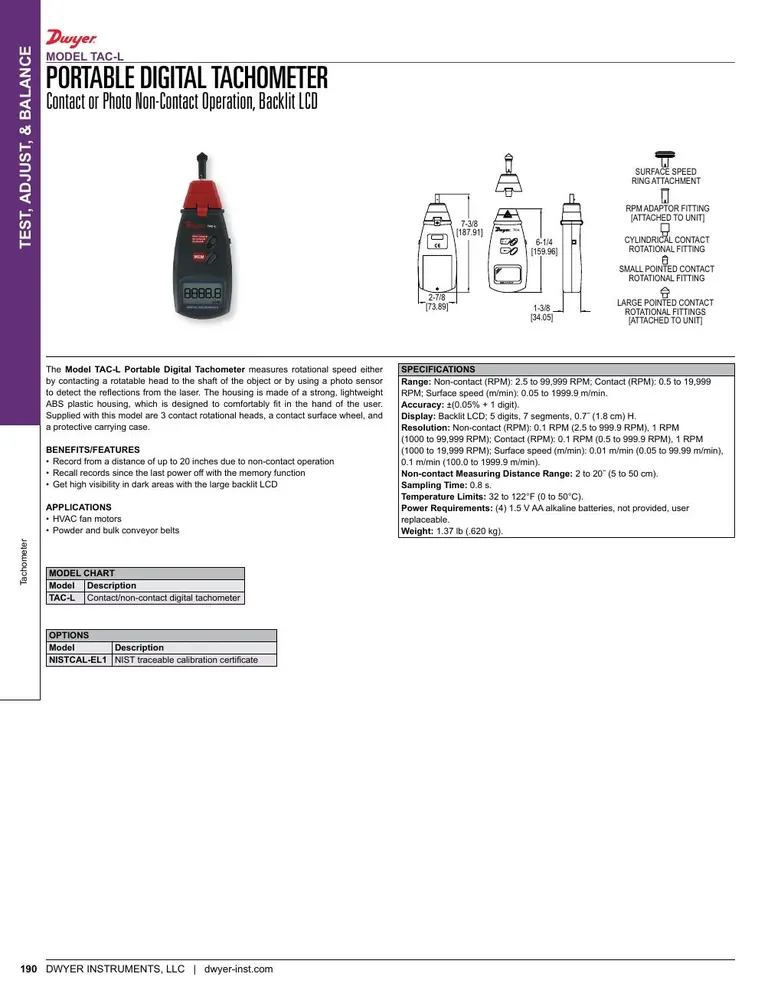

| Document | Dwyer/Omega TAC-L specification sheet (assets.dwyeromega.com) |
