Yokogawa

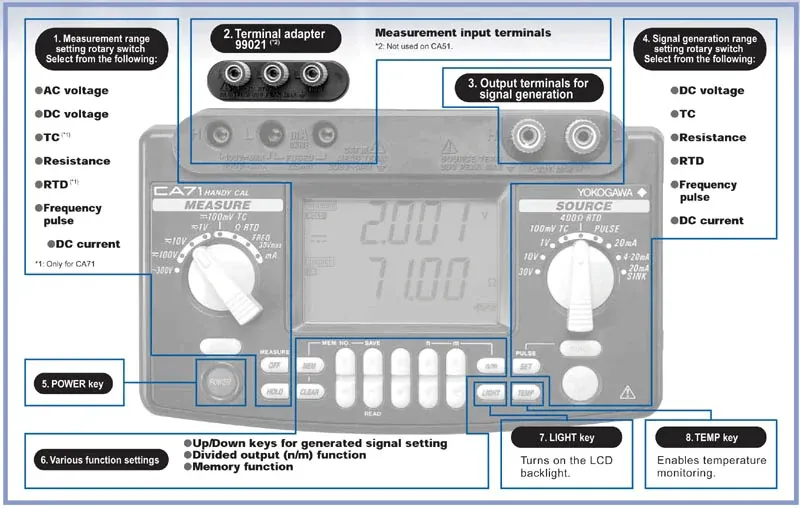

Yokogawa CA71 Handy CAL Multifunction Calibrator
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Display
Segmented LCD ~76×48 mm with LED backlight
Type
Portable multifunction HANDY CAL calibrator (CA71)
Source Functions
DCV/DCI/resistance/TC/frequency/pulse source; simultaneous measure
Source Voltage
DCV ranges 100 mV / 1 V / 10 V / 30 V
Source Current
20 mA / 4–20 mA; 20 mA SINK from 5–28 V external
Tc Rtd
TC K/E/J/T/N/L/U/R/S/B; RTD Pt100/JPt100 measure (CA71); built-in RJC
| المعامل | القيمة |
|---|---|
| Display | Segmented LCD ~76×48 mm with LED backlight |
| Type | Portable multifunction HANDY CAL calibrator (CA71) |
| Source Functions | DCV/DCI/resistance/TC/frequency/pulse source; simultaneous measure |
| Source Voltage | DCV ranges 100 mV / 1 V / 10 V / 30 V |
| Source Current | 20 mA / 4–20 mA; 20 mA SINK from 5–28 V external |
| Tc Rtd | TC K/E/J/T/N/L/U/R/S/B; RTD Pt100/JPt100 measure (CA71); built-in RJC |
| Functions | n/m divided output, auto-step, sweep, 50-set memory, RS-232 |
| Power | 4× AA alkaline or optional AC adapter; ~12–40 h depending on load |
| Size Weight | Approx. 190×120×55 mm; ~730 g including batteries |
| Document | GS CA71-E + IM CA71-E |
