Druck

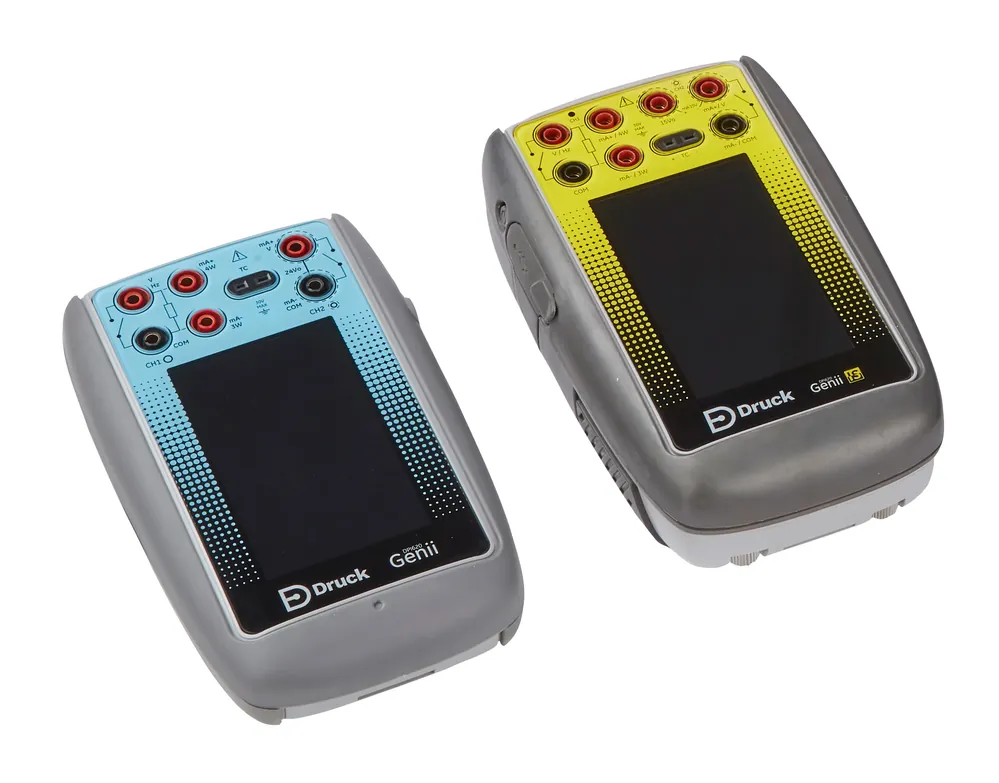

Druck DPI 620 Genii-IS
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Protection
IP54 (IS model)
Display
110 mm (4.3 in) color touch LCD, 480×800; 2 mm toughened glass
Approvals
CE; UKCA; ATEX; IECEx; ETL (US/Canada)
Hazardous area
ATEX/IECEx II 2G Ex ib IIC T4 Gb; ETL Class I Zone 1 AEx/Ex ib IIC T4 Gb
Instrument Variant
DPI620G-IS intrinsically safe modular multifunction calibrator
Operating Temperature
−10 to 50 °C (14 to 122 °F)
| المعامل | القيمة |
|---|---|
| Protection | IP54 (IS model) |
| Display | 110 mm (4.3 in) color touch LCD, 480×800; 2 mm toughened glass |
| Approvals | CE; UKCA; ATEX; IECEx; ETL (US/Canada) |
| Hazardous area | ATEX/IECEx II 2G Ex ib IIC T4 Gb; ETL Class I Zone 1 AEx/Ex ib IIC T4 Gb |
| Instrument Variant | DPI620G-IS intrinsically safe modular multifunction calibrator |
| Operating Temperature | −10 to 50 °C (14 to 122 °F) |
| Storage Temperature | −20 to 70 °C (−4 to 158 °F) |
| Size | 183 × 114 × 55 mm (7.2 × 4.5 × 2.2 in) |
| Weight | 1.1 kg (2.4 lb) including battery |
| Battery | Li-ion IO620G-IS-BATTERY 4000 mAh; safe-area charge only via dedicated charger |
| Battery Life | ≈7 h measure (CH1); ≈5 h dual mA measure with loop at 12 mA |
| Memory | 800 MHz CPU; 512 MB SDRAM; 8 GB internal flash (IS) |
| Connectivity | USB Mini-B client (IS) |
| Functions | Modular measure/source pressure, electrical, temperature; HART/Foundation options per platform |
| Humidity | 0 to 90% RH non-condensing |
| Special Features | Detachable IS battery with charge LED; modular PM620/IDOS platform |
