Druck

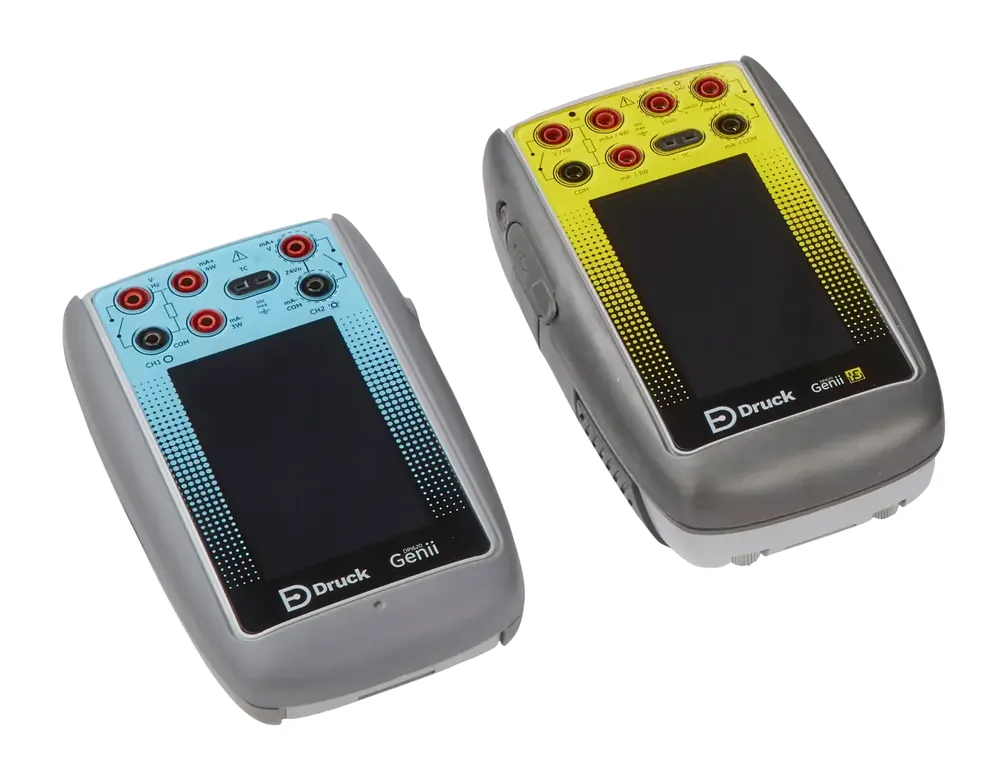

Druck DPI 620 Genii Multifunction Calibrator Package
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Display
110 mm (4.3 in) 480×800 pixels
Communication
Optional HART and Foundation Fieldbus communicators
Instrument Type
Modular multifunction calibrator + optional HART/Foundation Fieldbus communicator
Ingress Protection
IP55 (DPI620G); IP54 (IS variants)
Weight
675 g (1.5 lb) including battery
Battery
Li-polymer IO620-Battery 4600–4800 mAh, 3.7 V nominal; ~12 h measure
| المعامل | القيمة |
|---|---|
| Display | 110 mm (4.3 in) 480×800 pixels |
| Communication | Optional HART and Foundation Fieldbus communicators |
| Instrument Type | Modular multifunction calibrator + optional HART/Foundation Fieldbus communicator |
| Ingress Protection | IP55 (DPI620G); IP54 (IS variants) |
| Weight | 675 g (1.5 lb) including battery |
| Battery | Li-polymer IO620-Battery 4600–4800 mAh, 3.7 V nominal; ~12 h measure |
| Electrical Measure | mA, mV, V, Ω, frequency, pulse; dual channels CH1/CH2 |
| Current Range | ±20 mA / ±55 mA measure; 0.2–24 mA source with int/ext loop |
| Temperature | RTD/TC measure and simulate (see datasheet tables) |
| Pressure | Via interchangeable PM620 modules + PV62x generation stations (package) |
| Electrical Safety | BS EN 61010-1 |
| Brand Note | Druck (Baker Hughes / GE Sensing heritage) |
