Optris
Optris PI 640i Infrared Camera
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض

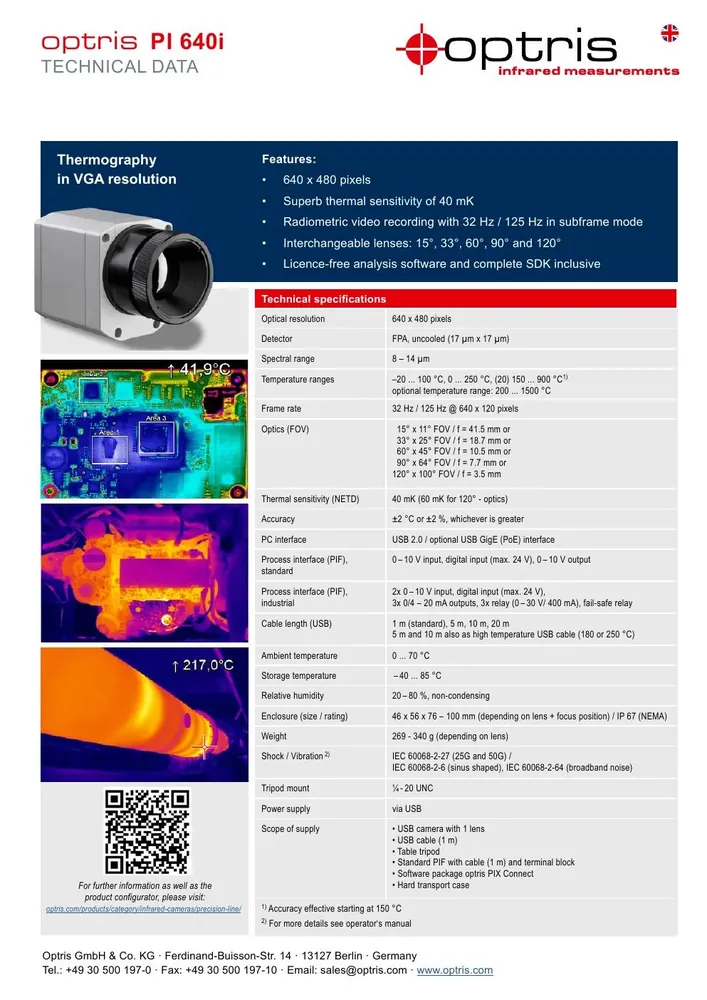

تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Accuracy
±2 °C or ±2%, whichever greater (accuracy effective from 150 °C on high range)
Ambient temperature
0…70 °C operating; −40…85 °C storage
Approvals
CE
Notes
Specs from Optris PI-640i DS EN2025-07-A. Operator manual PI-MA blocked by OEM WAF this pass.
Optical Resolution
640 × 480 pixels (FPA uncooled 17 µm)
Spectral Range
8–14 µm
| المعامل | القيمة |
|---|---|
| Accuracy | ±2 °C or ±2%, whichever greater (accuracy effective from 150 °C on high range) |
| Ambient temperature | 0…70 °C operating; −40…85 °C storage |
| Approvals | CE |
| Notes | Specs from Optris PI-640i DS EN2025-07-A. Operator manual PI-MA blocked by OEM WAF this pass. |
| Optical Resolution | 640 × 480 pixels (FPA uncooled 17 µm) |
| Spectral Range | 8–14 µm |
| Temperature Ranges | −20…100 °C; 0…250 °C; (20)150…900 °C; optional 200…1500 °C |
| Thermal Sensitivity | NETD 40 mK (60 mK with 120° optics) |
| Frame Rate | 32 Hz full frame / 125 Hz @ 640 × 120 subframe |
| Optics | Interchangeable 15°, 33°, 60°, 90°, 120° FOV lenses |
| Interfaces | USB 2.0; optional USB GigE (PoE); standard/industrial process interface (PIF) |
| Protection Rating | IP67 (NEMA) |
| Dimensions Weight | 46 × 56 × 76–100 mm depending on lens; 269–340 g |
| Power Supply | via USB |
| Software | Licence-free PIX Connect + SDK included |
| Shock Vibration | IEC 60068-2-27 (25G/50G); IEC 60068-2-6 / -2-64 |
