Additel

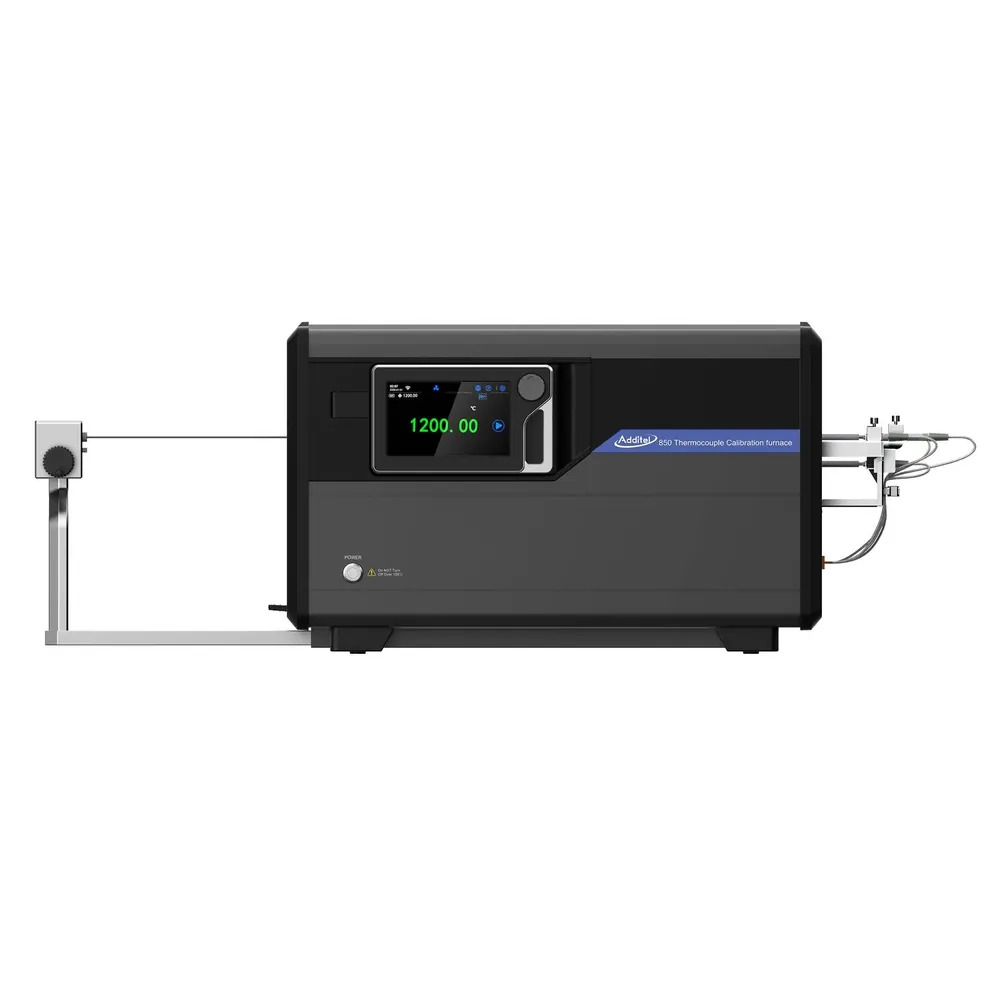

Additel ADT850 Laboratory Thermocouple Calibration Furnace
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Measuring range
Temperature control 100 °C to 1200 °C
Accuracy
Display accuracy ±5 °C; display resolution 0.01 °C
Supply
220 V ±10%, 50/60 Hz; system 20 A; heater power 4000 W
Process connection
Sliding probe holder; immersion depths 200–370 mm across 9 modes; alumina and metal inserts
Ambient temperature
Operating 0 °C to 50 °C, 0–90% RH non-condensing, <2000 m altitude
Approvals
CE stated on OEM materials where applicable
| المعامل | القيمة |
|---|---|
| Measuring range | Temperature control 100 °C to 1200 °C |
| Accuracy | Display accuracy ±5 °C; display resolution 0.01 °C |
| Supply | 220 V ±10%, 50/60 Hz; system 20 A; heater power 4000 W |
| Process connection | Sliding probe holder; immersion depths 200–370 mm across 9 modes; alumina and metal inserts |
| Ambient temperature | Operating 0 °C to 50 °C, 0–90% RH non-condensing, <2000 m altitude |
| Approvals | CE stated on OEM materials where applicable |
| Stability | Stability ±0.1 °C |
| Uniformity | Radial ±0.2 °C @ 1200 °C; axial ±0.2 °C @ 1200 °C |
| Heating Time | 23 °C to 1200 °C in 40 min (empty well) |
| Cooling Time | 1200 °C to 300 °C in 90 min (empty well); quick-cool technology |
| Enclosure Material | Laboratory horizontal furnace chassis with pivoting 7 in color touchscreen |
| Communications | Wi-Fi, Bluetooth, USB, LAN |
| Weight | 45 kg (99.2 lb) without insert; size 342 × 424 × 680 mm |
| Special Features | 3-in-1 furnace with 9 unique modes; multi-zone control; EMF shielding; annealing support |
