Watlow

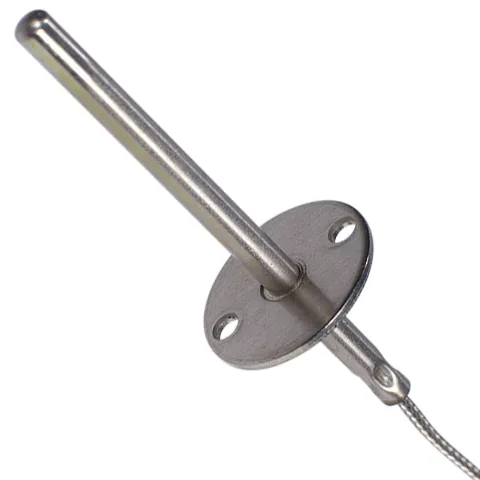

Watlow Insulated Wire Thermocouple
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Sensor type
Insulated wire thermocouple Styles 61 and 62 with SERV-RITE wire
Calibrations
Type J, K, T, and E
Junction
Exposed or protected measuring junction (Style 61 exposed; Style 62 PFA-encapsulated options)
Insulation
Woven fiberglass or high-temperature engineered resins; optional SS braid/armor
Temperature Rating
Fiberglass-insulated constructions up to 900 °F (480 °C) continuous
Lead Lengths
Standard catalog lead lengths from 6 to 360 in
| المعامل | القيمة |
|---|---|
| Sensor type | Insulated wire thermocouple Styles 61 and 62 with SERV-RITE wire |
| Calibrations | Type J, K, T, and E |
| Junction | Exposed or protected measuring junction (Style 61 exposed; Style 62 PFA-encapsulated options) |
| Insulation | Woven fiberglass or high-temperature engineered resins; optional SS braid/armor |
| Temperature Rating | Fiberglass-insulated constructions up to 900 °F (480 °C) continuous |
| Lead Lengths | Standard catalog lead lengths from 6 to 360 in |
| Sheath Options | PFA-coated and 300-series stainless sheaths; flat/drill point tips |
| Cold End | Epoxy sealed cold ends for moisture resistance |
| Color Code | ASTM E230 color coding for standard catalog types |
| Mounting Options | Springs, ring terminals, nozzle, pipe clamp, grommet, shim styles in same general-app family |
| Special Features | Economical flexible insulated-wire construction for medium-duty process sensing |
| Application | Food processing, plating, heat treating, packaging, ovens, pipe tracing, medical equipment |
