Endress+Hauser

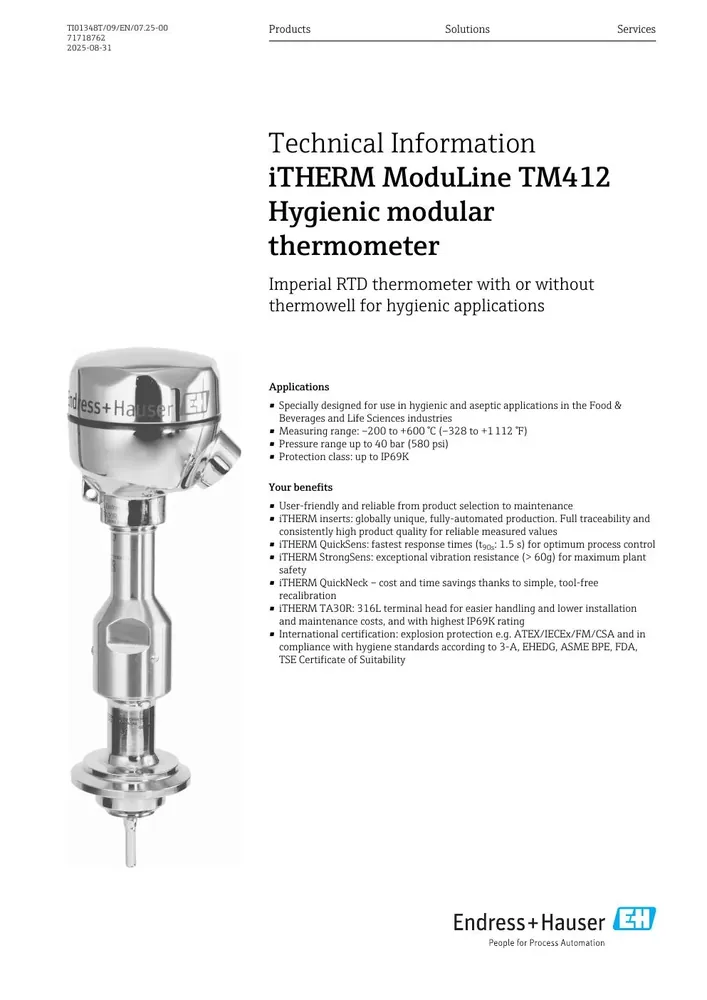

Endress+Hauser iTHERM ModuLine TM412 Hygienic Thermometer
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Measuring range
Pt100 WW –200 to +600 °C (–328 to +1112 °F); QuickSens –50 to +200 °C; StrongSens –50 to +500 °C
Accuracy
Class B / A / AA per IEC 60751 (configuration-dependent)
Process connection
Hygienic process adapters / weld-in / nipple-union-nipple NPT ½" options
Protection
Up to IP69K
Approvals
Explosion protection e.g. ATEX/IECEx/FM/CSA (order-code dependent)
Response Time
iTHERM QuickSens t90 ≈ 1.5 s; StrongSens t90 ≈ 9.5 s (configuration-dependent)
| المعامل | القيمة |
|---|---|
| Measuring range | Pt100 WW –200 to +600 °C (–328 to +1112 °F); QuickSens –50 to +200 °C; StrongSens –50 to +500 °C |
| Accuracy | Class B / A / AA per IEC 60751 (configuration-dependent) |
| Process connection | Hygienic process adapters / weld-in / nipple-union-nipple NPT ½" options |
| Protection | Up to IP69K |
| Approvals | Explosion protection e.g. ATEX/IECEx/FM/CSA (order-code dependent) |
| Response Time | iTHERM QuickSens t90 ≈ 1.5 s; StrongSens t90 ≈ 9.5 s (configuration-dependent) |
| Process Pressure | Up to 40 bar (580 psi) at 20 °C |
| Sensor | Pt100 per IEC 60751 (WW/TF); TC types J/K/N optional |
| Thermowell | Hygienic modular thermowell with/without; imperial US style |
| Surface Finish | Hygienic finishes for F&B / Life Sciences per TI |
| Transmitter | Optional iTEMP head transmitters (4–20 mA, HART, PA, FF, PROFINET APL, IO-Link) |
| Hygiene | 3-A, EHEDG, ASME BPE, FDA, TSE Certificate of Suitability |
| Special Features | iTHERM QuickNeck tool-free recalibration; TA30R 316L head with IP69K |
| Max Immersion Length | Up to 48" on request |
