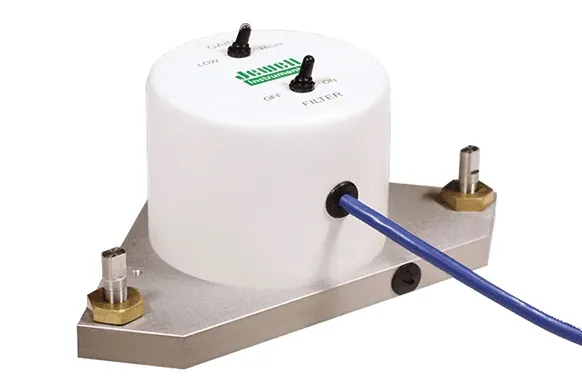

Jewell Instruments A701-2 (4X) Platform Tiltmeter
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Measuring range
A701-2A(4X) High-Gain ±8000 μrad (±0.46°); A701-2B(4X) Mid-Range ±4.0°
Accuracy
Nonlinearity max 1% FRO (2A) / 2% FRO (2B); nonrepeatability 2 μrad static
Output
±8 VDC single-ended or ±16 VDC differential; channels X-tilt, Y-tilt, Temperature
Supply
±11 to ±15 VDC @ +11 and -6 mA; 250 mV ripple max; reverse-polarity protected
Housing
Anodized and painted aluminum
Protection
NEMA 4X / IP65 weatherproof (4X version)
| المعامل | القيمة |
|---|---|
| Measuring range | A701-2A(4X) High-Gain ±8000 μrad (±0.46°); A701-2B(4X) Mid-Range ±4.0° |
| Accuracy | Nonlinearity max 1% FRO (2A) / 2% FRO (2B); nonrepeatability 2 μrad static |
| Output | ±8 VDC single-ended or ±16 VDC differential; channels X-tilt, Y-tilt, Temperature |
| Supply | ±11 to ±15 VDC @ +11 and -6 mA; 250 mV ripple max; reverse-polarity protected |
| Housing | Anodized and painted aluminum |
| Protection | NEMA 4X / IP65 weatherproof (4X version) |
| Ambient temperature | Operating −25 to +70 °C; storage −30 to +100 °C |
| Approvals | NEMA 4X / IP65; RoHS ordering options |
| Sensor type | Absolute gravity-referenced electrolytic platform tiltmeter with invar leveling legs |
| Resolution | <1 μrad (2A High-Gain); 1.0 μrad (2B Mid-Range) |
| Time Constant | 0.15 s |
| Scale Factor | 2A: 1 μrad/mV; 2B: 0.5 °/V |
| Cable | 3 m (10 ft) multiconductor + overall shield, PVC jacket, connectors included |
| Weight | 3 lb (1.4 kg) |
