Gizmo Engineering

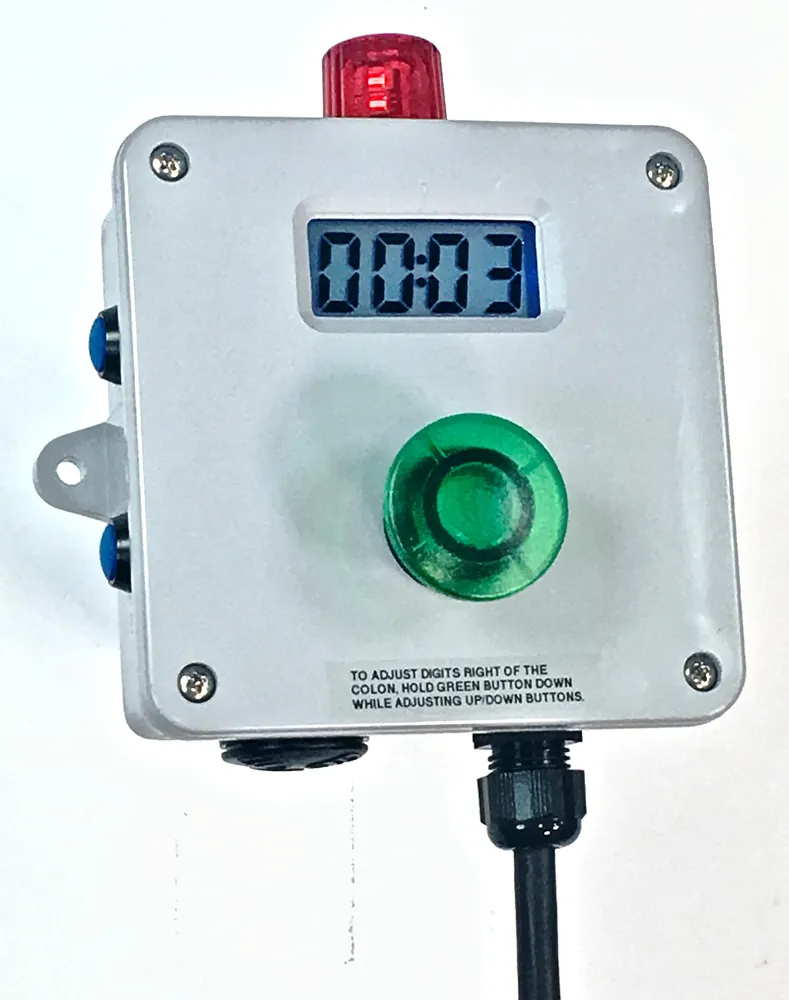

Gizmo Engineering T5 Production Cycle Timer
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Display
18 mm backlit digits; acrylic window; Lexan beacon lens
Type
Gizmo Engineering T5 AC-powered digital production cycle timer with relay and buzzer
Enclosure
PVC IP65 / NEMA 4X; junction box about 5 x 5 x 2 in; product about 6.3 x 6.5 x 3.0 in
Time Range
99:99 minutes:seconds or 99:99 hours:minutes (DIP selectable)
Timing Accuracy
+/-0.01% (about 8.64 s/day); precision/repeatability +/-0.001%
Buzzer
About 103 dB at 2 feet; 316 SS diaphragm
| المعامل | القيمة |
|---|---|
| Display | 18 mm backlit digits; acrylic window; Lexan beacon lens |
| Type | Gizmo Engineering T5 AC-powered digital production cycle timer with relay and buzzer |
| Enclosure | PVC IP65 / NEMA 4X; junction box about 5 x 5 x 2 in; product about 6.3 x 6.5 x 3.0 in |
| Time Range | 99:99 minutes:seconds or 99:99 hours:minutes (DIP selectable) |
| Timing Accuracy | +/-0.01% (about 8.64 s/day); precision/repeatability +/-0.001% |
| Buzzer | About 103 dB at 2 feet; 316 SS diaphragm |
| Relay | 15 A @ 120 VAC carrying current; NO/NC terminal options |
| Power | AC via 10 ft SJOOW piggyback cord (NEMA 5-15); PCB 12 VDC |
| Modes | Multiple DIP-selected behaviors (manual stop, early warning, repeating cycles, Andon/runtime class) |
| Materials | 316 SS screws; PVC enclosure; waterproof industrial production timer |
| Variants | T5X (no blue buttons); T5-S3 with stack light |
| Document | Gizmo Engineering Datasheet-T5 + Customer Instructions Timer T5 (gizmo-engineering.com) |
