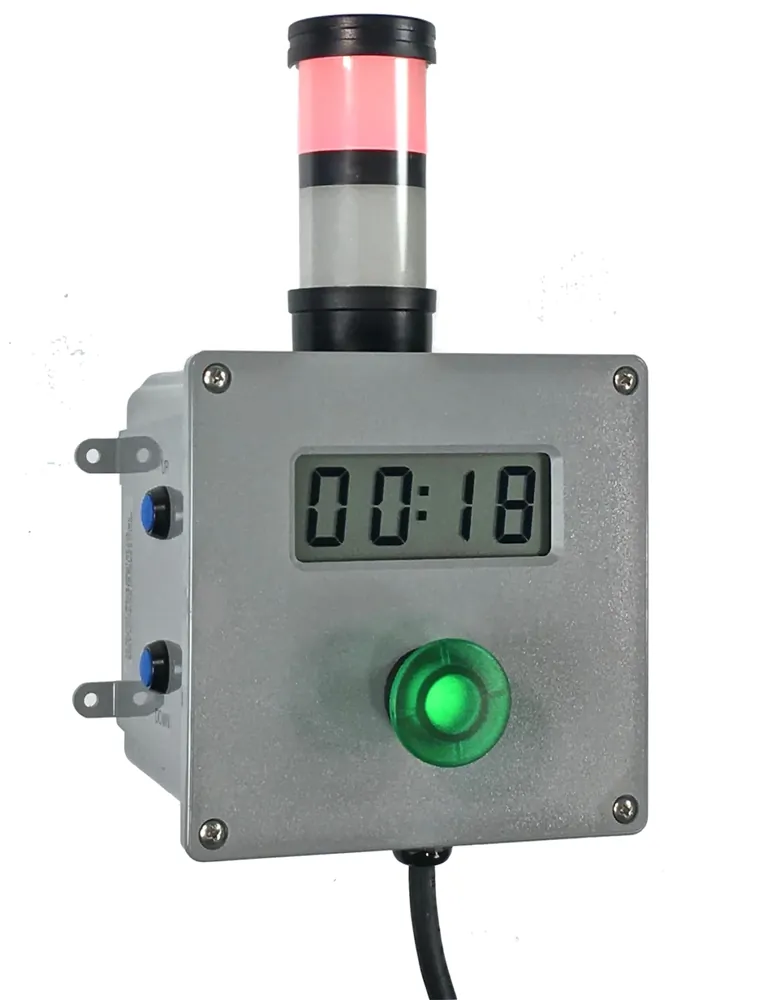

Gizmo Engineering T6 Large Display Production Cycle Timer
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Display
30 mm digits; 88 x 33 mm display opening; acrylic window
Type
Large-display production cycle timer with relay (T6 family)
Enclosure
6 x 6 x 2 in PVC junction box; IP65 / NEMA 4X
Time Range
99 min:99 s or 99 h:99 min
Timing Accuracy
+/-0.01% (about 8.64 s/day); precision +/-0.001%
Relay
15 A @ 120 VAC; N.O. or N.C. via terminal block position
| المعامل | القيمة |
|---|---|
| Display | 30 mm digits; 88 x 33 mm display opening; acrylic window |
| Type | Large-display production cycle timer with relay (T6 family) |
| Enclosure | 6 x 6 x 2 in PVC junction box; IP65 / NEMA 4X |
| Time Range | 99 min:99 s or 99 h:99 min |
| Timing Accuracy | +/-0.01% (about 8.64 s/day); precision +/-0.001% |
| Relay | 15 A @ 120 VAC; N.O. or N.C. via terminal block position |
| Buzzer | About 103 dB at 2 ft; strobing red beacon on base T6 |
| Power Cord | SJOOW 14 AWG/3C piggyback cord about 10 ft (NEMA 5-15) |
| Models | T6, T6-S2 (R/G stack), T6-S3 (R/Y/G stack), T6X (internal set buttons) |
| Document | Gizmo Engineering Datasheet-T6.pdf (2026-01) |
