Pulsar Measurement

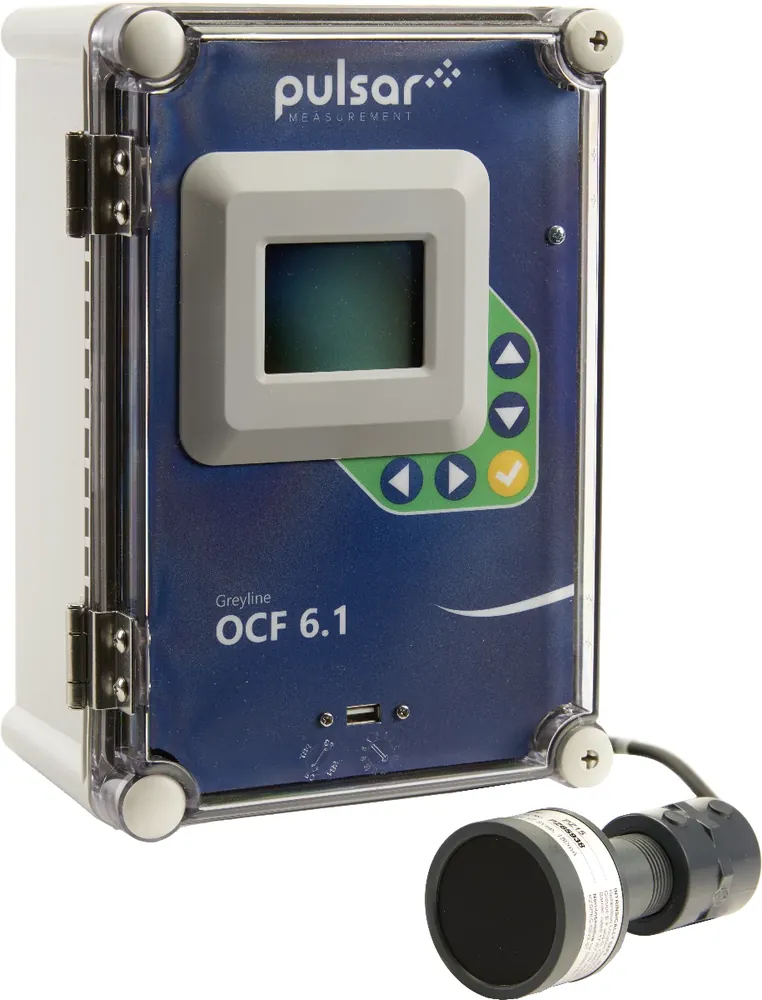

Pulsar Measurement Greyline OCF 6.1 Open Channel Flow Meter
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Accuracy
±0.25% of range or 2 mm (0.08 in), whichever greater
Approvals
CE, cCSAus; sensor non-incendive Class I Div 2; optional I.S. barriers for Div 1
Type
Non-contacting ultrasonic open-channel flow and tank level meter (Greyline OCF 6.1)
Sensor Range
PZ15: 4.6 m (15 ft); PZ32T: 9.8 m (32 ft)
Deadband
Programmable; minimum 203.2 mm (8 in)
Outputs
Isolated 4–20 mA / 0–5 V; 2× form-C relays 5 A SPDT
| المعامل | القيمة |
|---|---|
| Accuracy | ±0.25% of range or 2 mm (0.08 in), whichever greater |
| Approvals | CE, cCSAus; sensor non-incendive Class I Div 2; optional I.S. barriers for Div 1 |
| Type | Non-contacting ultrasonic open-channel flow and tank level meter (Greyline OCF 6.1) |
| Sensor Range | PZ15: 4.6 m (15 ft); PZ32T: 9.8 m (32 ft) |
| Deadband | Programmable; minimum 203.2 mm (8 in) |
| Outputs | Isolated 4–20 mA / 0–5 V; 2× form-C relays 5 A SPDT |
| Logging | Built-in 26-million-point data logger with USB output |
| Communications | Optional Modbus RTU via RS-485 |
| Electronics Temp | −20 °C to 60 °C (−5 °F to 140 °F) |
| Power | 100–240 V AC 50/60 Hz; optional 9–32 V DC |
