Georg Fischer / GF Signet
Georg Fischer Type 182 Electrically Actuated Ball Valve
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Supply
100–230 VAC 50/60 Hz or 24 VAC/DC ±15%
Approvals
CE (actuators); ISO 16136 design / ISO 9393 test references on datasheet
Notes

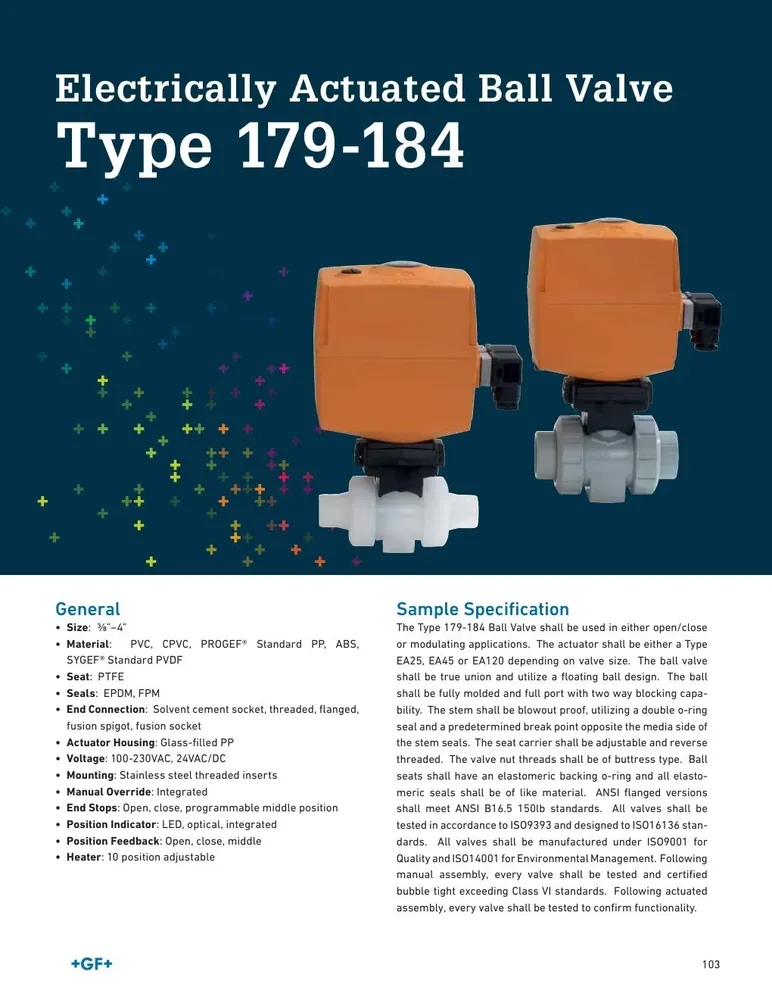

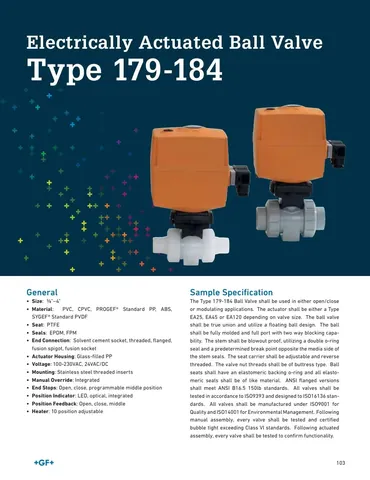

Specs from GF Type 179-184 Electrically Actuated Ball Valve datasheet. Type 182 = ASTM PVC/CPVC. No Instrumart.
Valve Type
True-union floating ball, full-port, two-way blocking; electrically actuated
Size Range
⅜–4 in (DN10–DN100 class per actuator map)
Body Materials
Type 182: PVC / CPVC (ASTM connections); family also PP, ABS, PVDF
| المعامل | القيمة |
|---|---|
| Supply | 100–230 VAC 50/60 Hz or 24 VAC/DC ±15% |
| Approvals | CE (actuators); ISO 16136 design / ISO 9393 test references on datasheet |
| Notes | Specs from GF Type 179-184 Electrically Actuated Ball Valve datasheet. Type 182 = ASTM PVC/CPVC. No Instrumart. |
| Valve Type | True-union floating ball, full-port, two-way blocking; electrically actuated |
| Size Range | ⅜–4 in (DN10–DN100 class per actuator map) |
| Body Materials | Type 182: PVC / CPVC (ASTM connections); family also PP, ABS, PVDF |
| Seat Seal | PTFE seats; EPDM or FPM seals |
| End Connections | Solvent cement socket, threaded, flanged, fusion spigot/socket (per material) |
| Actuator | EA25 (⅜–2 in), EA45 (2½ in), EA120 (3–4 in); glass-filled PP housing |
| Cycle Time | EA25 ~5 s/90°; EA45 ~6 s/90°; EA120 ~15 s/90° |
| Position Feedback | Open / close / middle; LED and optical indicator; integrated manual override |
| Protection Rating | Actuator IP67 class per family literature |
| Pressure Rating | PN10 class typical for family ASTM PVC/CPVC configurations |
