Georg Fischer / GF Signet

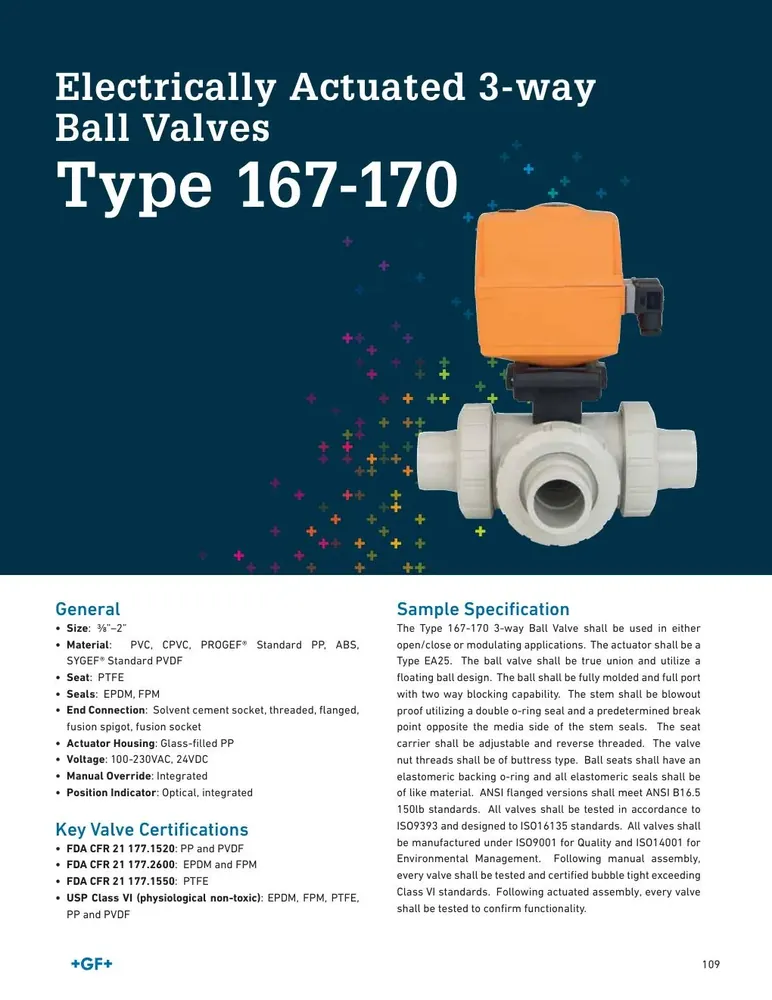

Georg Fischer Type 167 Electrically Actuated 3-Way Ball Valve
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Ambient temperature
−10 to +50 °C (14 to 122 °F) actuator band
Approvals
CE; FDA CFR 21 (PP/PVDF/EPDM/FPM/PTFE); USP Class VI; RoHS
Notes
Specs from GF Piping Systems Type 167-170 datasheet + EA15-250 actuator manual. No Instrumart.
Valve Type
Type 167 electrically actuated horizontal 3-way ball valve (PVC/CPVC/ABS); Types 168/169/170 siblings
Size Range
⅜"–2" (DN10–DN50)
Pressure Rating
PN10
| المعامل | القيمة |
|---|---|
| Ambient temperature | −10 to +50 °C (14 to 122 °F) actuator band |
| Approvals | CE; FDA CFR 21 (PP/PVDF/EPDM/FPM/PTFE); USP Class VI; RoHS |
| Notes | Specs from GF Piping Systems Type 167-170 datasheet + EA15-250 actuator manual. No Instrumart. |
| Valve Type | Type 167 electrically actuated horizontal 3-way ball valve (PVC/CPVC/ABS); Types 168/169/170 siblings |
| Size Range | ⅜"–2" (DN10–DN50) |
| Pressure Rating | PN10 |
| Ball Seat | PTFE (PVDF optional) |
| Seals | EPDM or FPM |
| Body Materials | PVC, CPVC, PROGEF PP, ABS, SYGEF PVDF |
| Actuator | EA25 electric actuator; glass-filled PP housing; integrated manual override and optical position indicator |
| Actuator Voltage | 100–230 VAC 50/60 Hz or 24 V AC/DC |
| Cycle Time | 5 s / 90° |
| Protection Rating | IP67 (EN 60529); UL/CSA NEMA 4X |
| Duty Cycle | 100% |
| End Connections | solvent cement socket, threaded, flanged, fusion spigot/socket |
