Amprobe

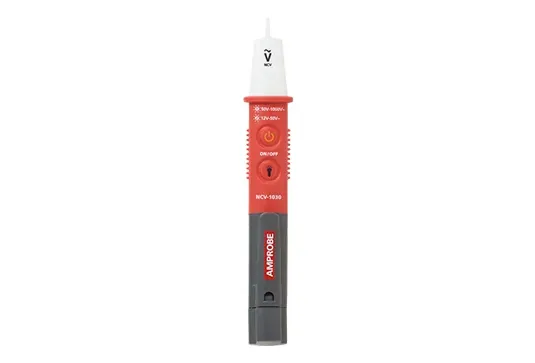

Amprobe NCV-1000 Series Non-Contact Voltage Probe
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Type
Amprobe NCV-1000 series non-contact AC voltage probe (NCV-1020 / NCV-1030 / NCV-1040)
Voltage Detection
Default 50-1000 V AC; high-sensitivity 12-50 V AC on NCV-1030 and NCV-1040
Indication
Audible buzzer and bright red LED voltage indication; on/off switch
Safety
CAT IV 1000 V; IP65 water and dust resistant for indoor/outdoor use
Work Light
Built-in work light on NCV-1030 and NCV-1040
Magnetic
Magnetic solenoid testing on NCV-1040 (yellow LED, field about 2.5 mT)
| المعامل | القيمة |
|---|---|
| Type | Amprobe NCV-1000 series non-contact AC voltage probe (NCV-1020 / NCV-1030 / NCV-1040) |
| Voltage Detection | Default 50-1000 V AC; high-sensitivity 12-50 V AC on NCV-1030 and NCV-1040 |
| Indication | Audible buzzer and bright red LED voltage indication; on/off switch |
| Safety | CAT IV 1000 V; IP65 water and dust resistant for indoor/outdoor use |
| Work Light | Built-in work light on NCV-1030 and NCV-1040 |
| Magnetic | Magnetic solenoid testing on NCV-1040 (yellow LED, field about 2.5 mT) |
| Power | Two 1.5 V AAA (LR03) batteries; continuous duty; auto power-off on 1030/1040 |
| Size Weight | About 156.2 x 23.5 x 27.5 mm; about 58-62 g with batteries |
| Operating | 0 to 40 C, RH <= 80%; altitude <= 2000 m |
| Document | Amprobe NCV-1000 series datasheet 6009731 A (amprobe.com) |
