Universal Flow Monitors (UFM)

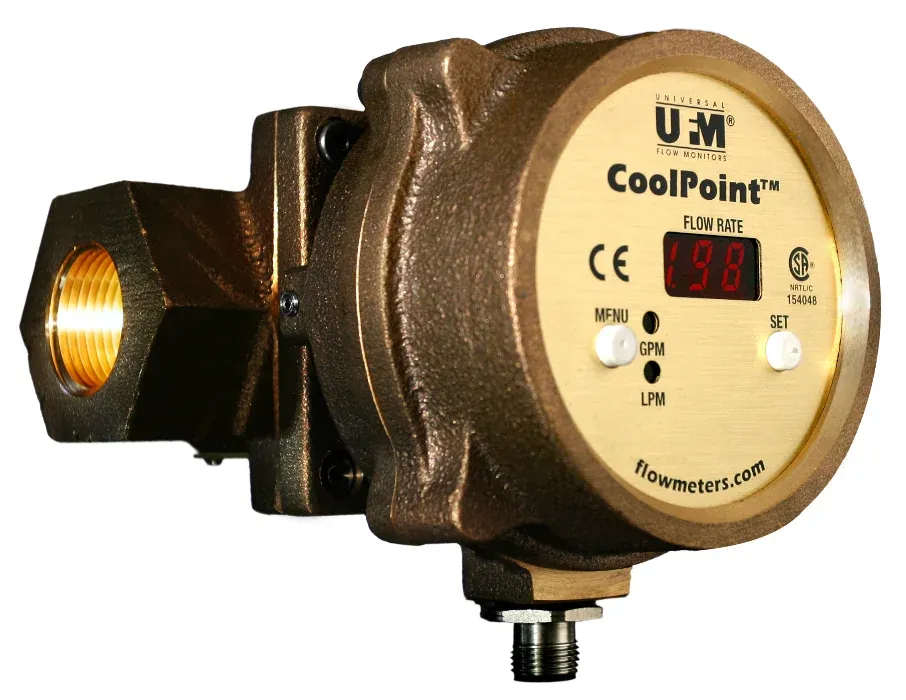

Universal Flow Monitors (UFM) UFM CoolPoint Flow Meter
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Accuracy
About +/-2% of full scale (maximum flow); repeatability about +/-0.25% of indicated
Display
3-digit LED local display (0.3 in digit height class on large units)
Type
Vortex shedding flow meter for water / glycol coolant / low-viscosity fluids (CoolPoint)
Pipe Sizes
About 1/4 to 4 inch family (small/medium/large CP/CT/CX variants)
Outputs
4-20 mA flow transmitter; solid-state relay configurable as alarm or pulse
Turndown
About 10:1
| المعامل | القيمة |
|---|---|
| Accuracy | About +/-2% of full scale (maximum flow); repeatability about +/-0.25% of indicated |
| Display | 3-digit LED local display (0.3 in digit height class on large units) |
| Type | Vortex shedding flow meter for water / glycol coolant / low-viscosity fluids (CoolPoint) |
| Pipe Sizes | About 1/4 to 4 inch family (small/medium/large CP/CT/CX variants) |
| Outputs | 4-20 mA flow transmitter; solid-state relay configurable as alarm or pulse |
| Turndown | About 10:1 |
| Pressure Large | Large CP 3-4 inch class: max about 200 PSIG (13 bar); flow ranges about 300-600 GPM |
| Temperature | Fluid temp class 35-150 F standard; high-temp option to about 210 F |
| Materials | Brass flow bodies with PVDF sensors and Viton seals standard; PEEK sensors for high temp |
| Enclosure | IP65 / Type 1,3,4,12,13 class; rotatable enclosure on many models |
| Certifications | CSA and CE certified class |
| Document | Universal Flow Monitors CoolPoint large vortex shedding datasheet (CP 3-4 inch sheet) |
