Rosemount

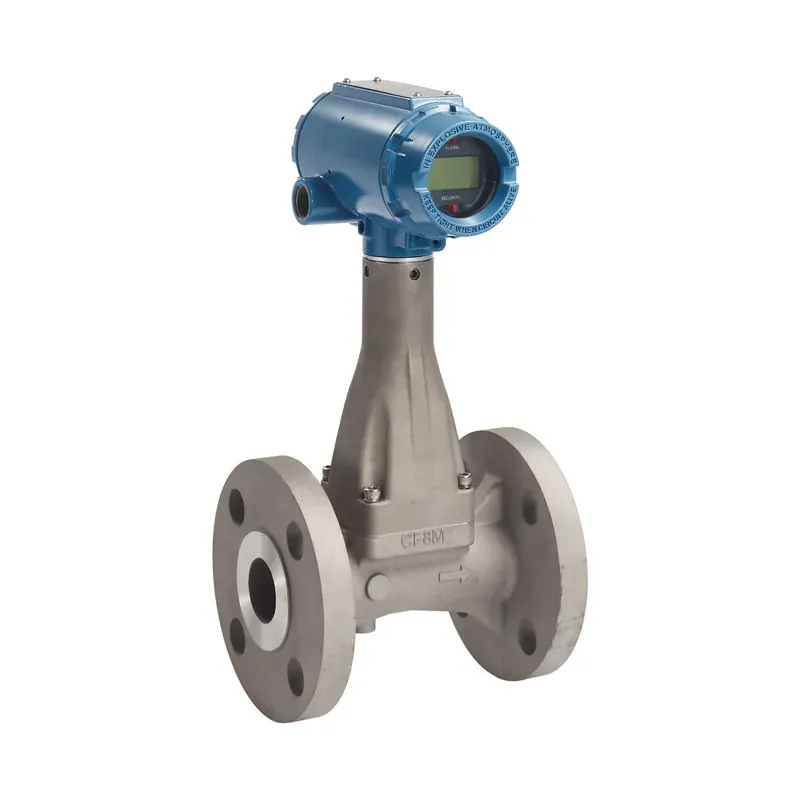

Rosemount 8600 Series Utility Vortex Flow Meter
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Measuring range
Utility vortex meter for liquids, gases, and steam; line sizes per PDS 00813-0100-4860 tables
Accuracy
Liquid ±0.75% of rate; gas/steam ±1.0% of rate (typical 8600 Utility class per PDS)
Output
4–20 mA with HART; pulse/frequency options per configuration
Process connection
Flanged and wafer styles per ordering table
Wetted parts
Stainless steel shedder bar / body options per PDS
Ambient temperature
Per electronics housing limits in PDS/manual
| المعامل | القيمة |
|---|---|
| Measuring range | Utility vortex meter for liquids, gases, and steam; line sizes per PDS 00813-0100-4860 tables |
| Accuracy | Liquid ±0.75% of rate; gas/steam ±1.0% of rate (typical 8600 Utility class per PDS) |
| Output | 4–20 mA with HART; pulse/frequency options per configuration |
| Process connection | Flanged and wafer styles per ordering table |
| Wetted parts | Stainless steel shedder bar / body options per PDS |
| Ambient temperature | Per electronics housing limits in PDS/manual |
| Display | Optional local LCD / LOI per configuration |
| Communication | HART on 4–20 mA loop |
| Approvals | ATEX; CSA; IECEx; CE |
| Repeatability | ±0.2% of rate typical |
| Media | Clean liquids, gases, and steam utility services |
| Process Temperature | Utility temperature envelope per 8600 PDS tables |
| Special Features | No moving parts; simplified utility installation; inherited 8800 vortex signal processing lineage |
| Turndown | Wide turndown for utility flow (see PDS sizing) |
