Endress+Hauser

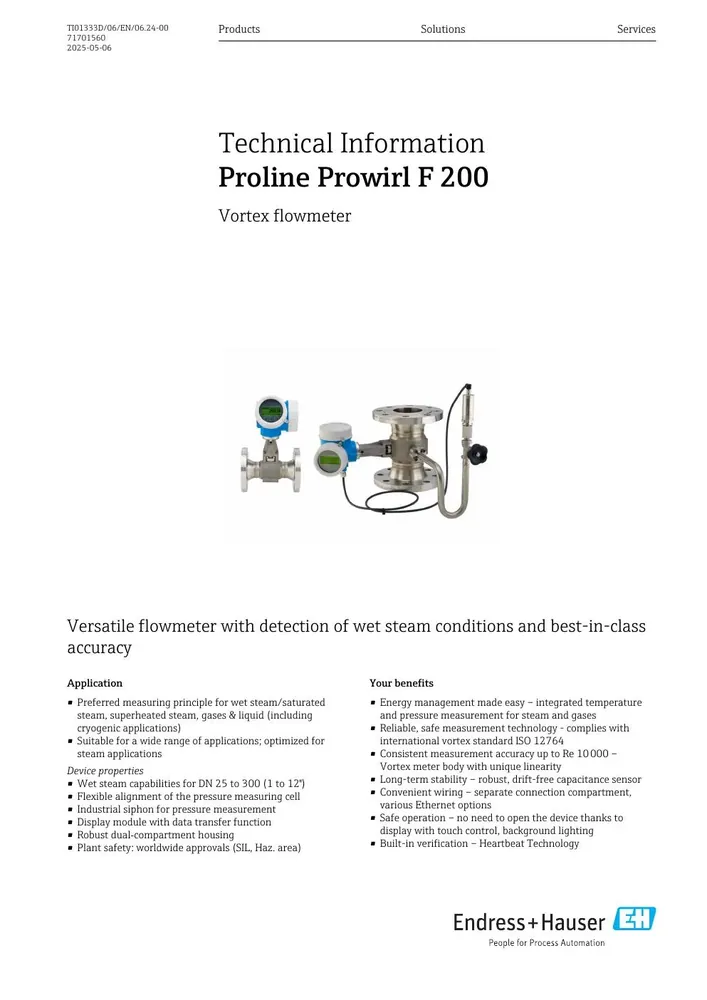

Endress+Hauser Proline Prowirl F 200 Vortex Flow Meter
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Wetted parts
CF3M/1.4408 measuring tube; 1.4404/F316/F316L flanges; Alloy C22 options
Protection
IP66/67, Type 4X enclosure
Approvals
SIL, ATEX/IECEx/cCSAus and other Haz.area options
Measuring Principle
Karman vortex street (ISO 12764)
Nominal Diameter
DN 15 to 300 (½ to 12") flanged
Volume Flow Accuracy Liquid
±0.75 % of reading (Re ≥ 10 000, standard)
| المعامل | القيمة |
|---|---|
| Wetted parts | CF3M/1.4408 measuring tube; 1.4404/F316/F316L flanges; Alloy C22 options |
| Protection | IP66/67, Type 4X enclosure |
| Approvals | SIL, ATEX/IECEx/cCSAus and other Haz.area options |
| Measuring Principle | Karman vortex street (ISO 12764) |
| Nominal Diameter | DN 15 to 300 (½ to 12") flanged |
| Volume Flow Accuracy Liquid | ±0.75 % of reading (Re ≥ 10 000, standard) |
| Volume Flow Accuracy Gas Steam | ±1.0 % of reading (Re ≥ 10 000, standard) |
| Medium Temperature Range | Standard –40 to +260 °C; high/low-temp options –200 to +400 °C |
| Max Process Pressure | PN 10 to 100 / Class 150 to 600 (order-code dependent) |
| Outputs | 4–20 mA HART; pulse/frequency/switch; Ethernet options; PROFINET over Ethernet-APL |
| Power Supply | Loop-powered DC 12 to 35 V (Proline 200) |
| Special Features | Wet steam detection/measurement packages; Heartbeat Technology; dual-compartment housing |
| Versions | Compact or remote transmitter |
