Panametrics

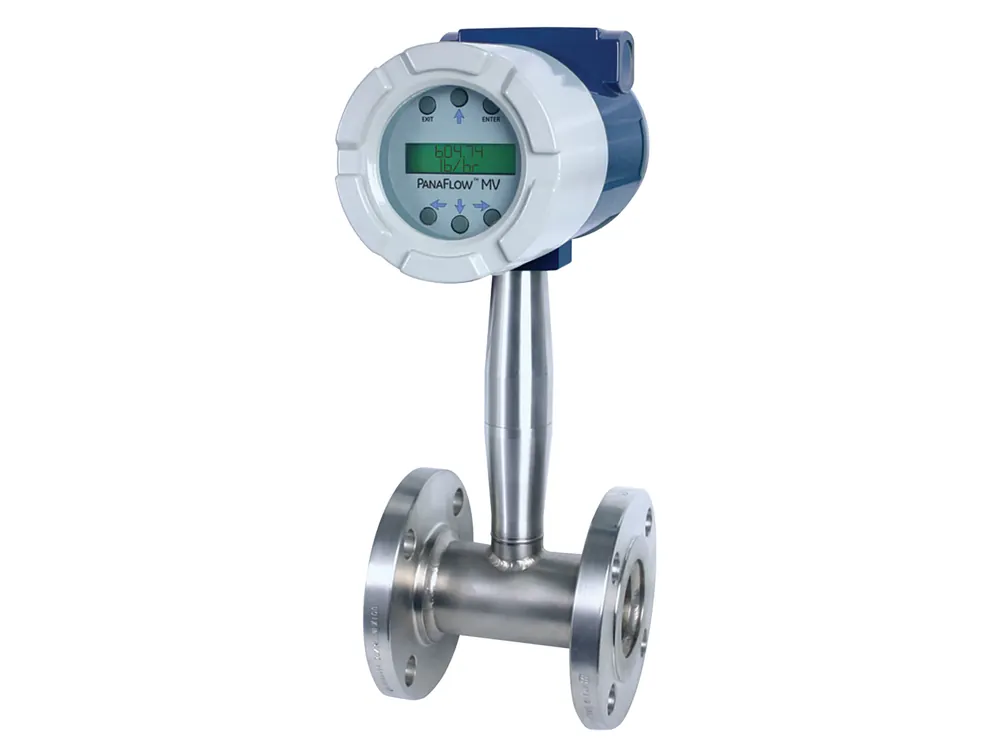

Panametrics PanaFlow MV84 Vortex Flow Meter
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Supply
12–36 VDC loop (DC2); 12–36 VDC / PoE (DC4); 100–240 VAC
Wetted parts
316L SS standard; carbon steel and Hastelloy C optional
Ambient temperature
Operating –40 to 140 °F (–40 to 60 °C); storage –40 to 185 °F
Display
2×16 alphanumeric LCD; magnetic-wand pushbuttons; 90° mount intervals
Meter Style
Inline multivariable vortex
Pipe Sizes
1/2 to 12 in (15 to 300 mm)
| المعامل | القيمة |
|---|---|
| Supply | 12–36 VDC loop (DC2); 12–36 VDC / PoE (DC4); 100–240 VAC |
| Wetted parts | 316L SS standard; carbon steel and Hastelloy C optional |
| Ambient temperature | Operating –40 to 140 °F (–40 to 60 °C); storage –40 to 185 °F |
| Display | 2×16 alphanumeric LCD; magnetic-wand pushbuttons; 90° mount intervals |
| Meter Style | Inline multivariable vortex |
| Pipe Sizes | 1/2 to 12 in (15 to 300 mm) |
| Fluid Types | Steam, gases, and liquids |
| Accuracy Volumetric | Liquids ±0.7% of rate; gas and steam ±1% of rate |
| Accuracy Mass | Liquids ±1% of rate; gas and steam ±1.5% of rate (50–100% of pressure range) |
| Accuracy Temperature | ±2 °F (±1 °C) |
| Accuracy Pressure | ±0.3% of full scale |
| Repeatability Mass | ±0.2% of rate |
| Process Temperature | Standard –40 to 500 °F (–40 to 260 °C); high-temp up to 750 °F (400 °C) |
| Outputs | Up to three 4–20 mA; alarms; totalizer pulse; HART, Modbus, BACnet |
| Enclosure Rating | Type 4X and IP66; FM/FMC Class I Div 1; ATEX/IECEx Ex d |
| Turndown | Application-dependent; can exceed 100:1 |
