Rosemount

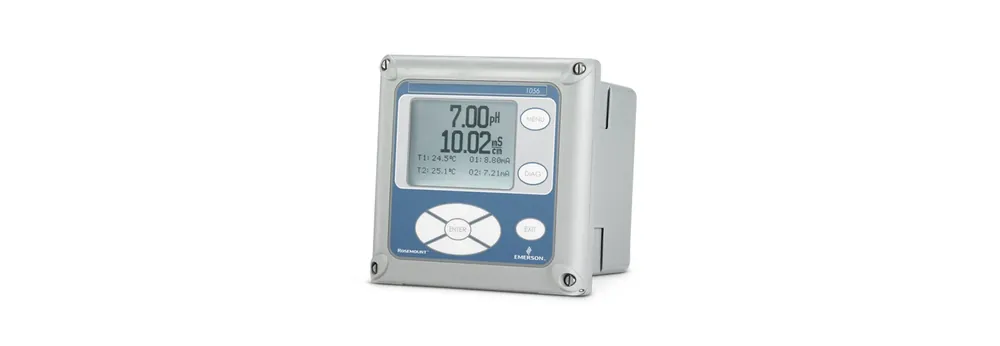

Rosemount 1056 Dual-Input Analyzer
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Display
Large customizable backlit graphic display of dual measurements + diagnostics/temperature
Type
Intelligent four-wire dual-channel liquid analysis transmitter (Rosemount 1056)
Inputs
Single or dual sensor inputs: pH/ORP/ISE, contacting/toroidal conductivity, free/total chlorine, DO, ozone, turbidity, flow/current
Outputs
Two 4-20 mA; HART or Profibus DP digital options
Enclosure
Polycarbonate Type 4X / IP65; overall about 155 x 155 x 131 mm; 1/2 DIN cutout
Weight
About 1.5 to 2.0 kg (3 to 4 lb)
| المعامل | القيمة |
|---|---|
| Display | Large customizable backlit graphic display of dual measurements + diagnostics/temperature |
| Type | Intelligent four-wire dual-channel liquid analysis transmitter (Rosemount 1056) |
| Inputs | Single or dual sensor inputs: pH/ORP/ISE, contacting/toroidal conductivity, free/total chlorine, DO, ozone, turbidity, flow/current |
| Outputs | Two 4-20 mA; HART or Profibus DP digital options |
| Enclosure | Polycarbonate Type 4X / IP65; overall about 155 x 155 x 131 mm; 1/2 DIN cutout |
| Weight | About 1.5 to 2.0 kg (3 to 4 lb) |
| Installation | Quick Start programming; modular field-replaceable signal boards with auto-recognition |
| Power | Line-powered four-wire transmitter (see PDS power option codes) |
| Certifications | FM/CSA/UL class listings per Product Data Sheet |
| Document | Emerson Rosemount 1056 Dual Channel Transmitter Product Data Sheet LIQ-PDS-1056 (May 2017) |
