Rosemount

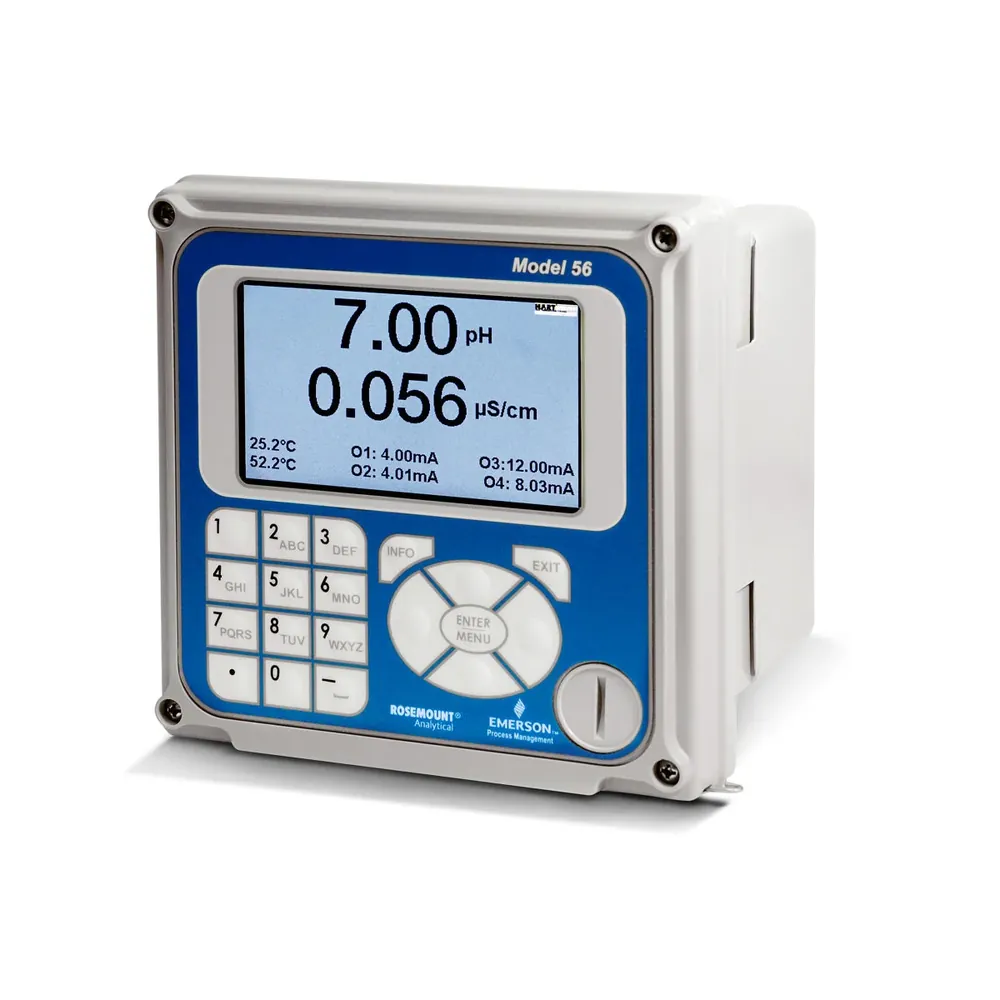

Rosemount 56 Dual Channel Transmitter
السعر عند الطلب
بدون دفع عبر الإنترنت · أضف بنودًا إلى قائمة طلب العرض
تنزيل ورقة المواصفات PDF
طلب العرض يحمل بنود قائمة المواد فقط. أرسل لعرض هندسي.
المعاملات الرئيسية
Display
Large customizable color display
Type
Line-powered dual-channel liquid analysis transmitter (Rosemount 56)
Inputs
pH/ORP, ISE, conductivity, turbidity, DO/chlorine/ozone, flow, 4–20 mA
Channels
Independent dual measurement channels
Control
Built-in PID controller
Logging
USB data logger / event logger
| المعامل | القيمة |
|---|---|
| Display | Large customizable color display |
| Type | Line-powered dual-channel liquid analysis transmitter (Rosemount 56) |
| Inputs | pH/ORP, ISE, conductivity, turbidity, DO/chlorine/ozone, flow, 4–20 mA |
| Channels | Independent dual measurement channels |
| Control | Built-in PID controller |
| Logging | USB data logger / event logger |
| Communications | HART or PROFIBUS DP options |
| Power Options | 24 VDC (code 02) or 85–265 VAC (code 03) with 4 alarm relays |
| Enclosure | Panel/wall mount; Type 4X class options |
| Certifications | Class I Div 2 hazardous location approvals (ordering-dependent) |
